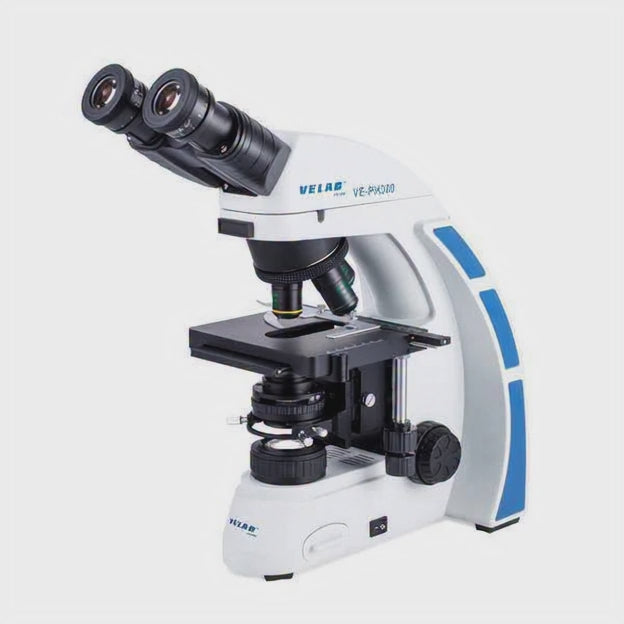

Name: VE-PH300 Biological Binocular Microscope w/ Phase Contrast Kit
Brand: VELAB
SKU: VE-PH300
Price: 4127.0 USD
Availability: InStock

Description
Especifications

The VE-PH300 phase contrast microscope was designed for professional use that allows immediate exams. It is used in biological areas for the observation of fresh samples without the need of applying stains that can damage their structure.

Used in the observation of cells and tissue, fresh blood analysis, quantification of microorganisms and parasites in fluids and tissues. Applicable in biological areas such as physiology, pathology, pharmacology and medicine. It has 4 phase rings and an observation position for a clear field. It has excellent optical quality components and highly efficient LED illumination.

Eyepieces	PL 10X/20 mm.
Nosepieces	Quadruple
Objectives	PH10X, PH20X, PH40X, PH100X (Oil) (S).
Optical System	Infinity-Corrected Plan Achromatic
Stage	Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9” x 5.5”.
Condenser	Abbe, A.N 1.25. Slot for placing sheets for phase contrast. Two blades 10X/40X y 20X/100X with option for bright field on both blades.
Diaphragm	Iris type.
Focus	Coarse and fine anti-slip control knob (precision 0.001 mm).
Ilumination	Kohler LED 3W.
Dimensions	185 x 396 x 290 mm / 7.2” x 15.5” x 11.4”.
Power supply	110/240V, 50/60 Hz AC adapter.
Main Features	Diopter adjustment on both eyepieces. Gemel type Binocular Head with 360° rotable eyepiece tube. Plates with vernier, millimeter scale and calipers. Objectives with phase rings, for phase contrast, and colored rings, for identification. Optional accessories for darkfield, polarisation and fluorescence. Phase-contrast by sliders coupled to the condenser. Interpupillary distance of 50 - 75 mm. Head inclined at 30 °. Stative, robust and reinforced. Easy to transport. Ilumination with intensity and diaphragm adjustment field in the lamp. Optical correction PL, for the best viewing. Phase-contrast by sliders coupled to the condenser.
Applications	Education: Upper grade levels Research Clinical
Accessories Included	Dust cover Immersion Oil Power cord Centered telescope Sliders for phase contrast 10x/40x and 20x/100x
Warranty	10 years
