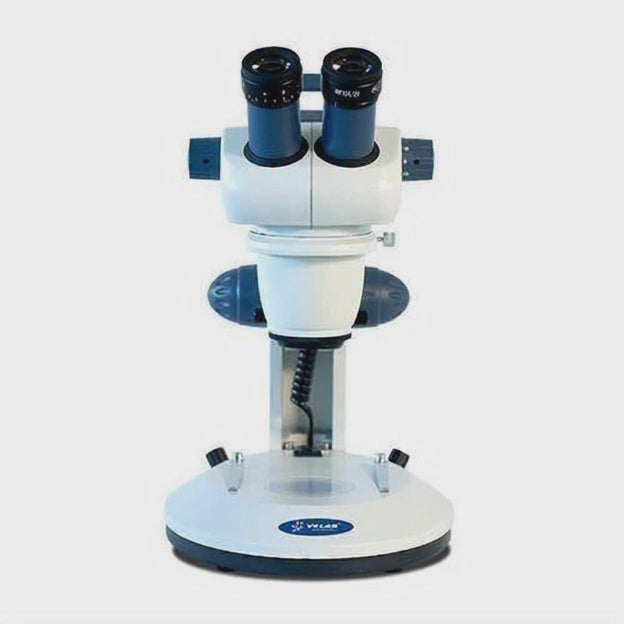

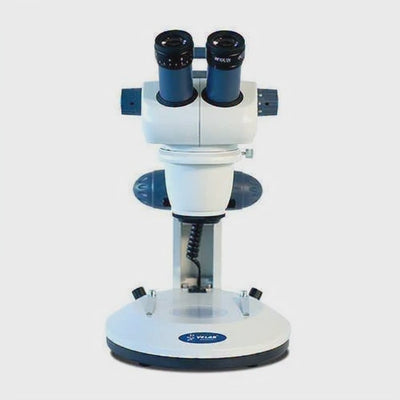

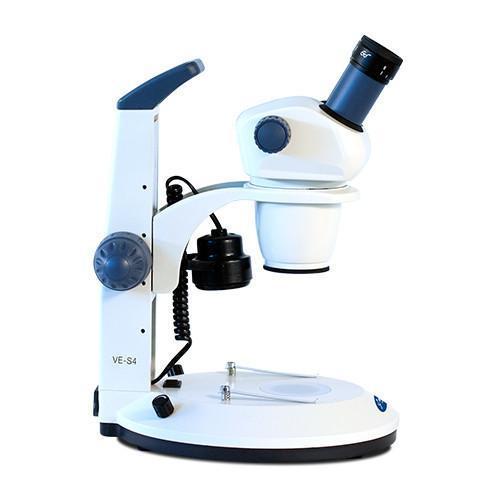

Ideal for higher education, research and industry, the VE-S4 is a versatile device, useful in production procedures or quality inspection of industrial products, thanks to its zoom system.
Its Greenough design allows three-dimensional observation of insects. The VE-S4 is ideal in the dissection and classification of organisms in entomology and taxonomy, as well as for observation and selection of viable embryos in livestock.
Eyepiece | WF 10X/20 mm. |

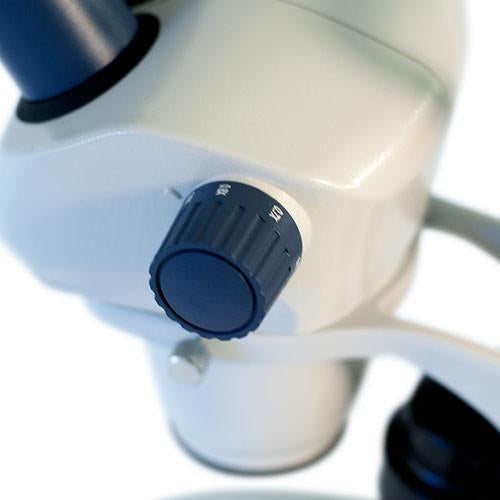

Objectives | Variable Magnification Zoom System 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4.5X (10 to 45 total increases). |
Stage | Interchangeable 60mm / 2.3 “ diameter stage, opaque glass |
Focus | Coarse anti-slip control knob. |

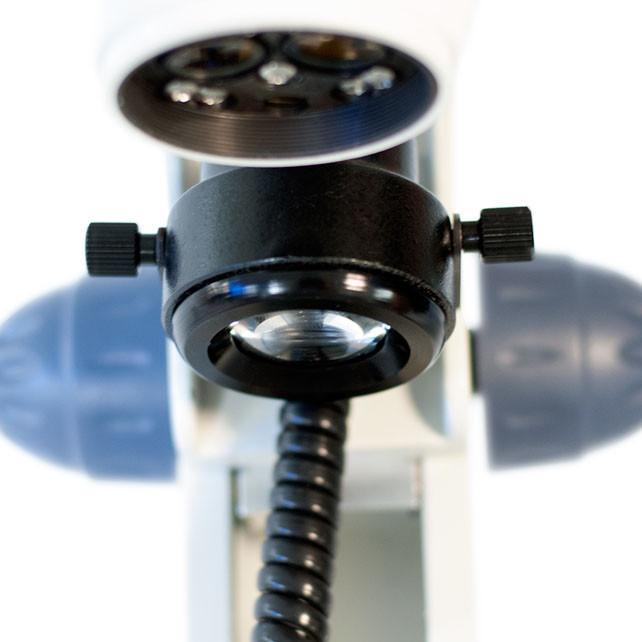

Ilumination | Transmitted and incident LED. |
Dimensions | 200 x 340 x 275 mm / 7.8” x 13.3” x 10.8”. |
Power supply | 110/240V, 50/60 Hz AC adapter. |
Main Features | Binocular head, inclined at 60 °. Interpupillary distance of 55 ~ 75mm Diopter adjustment in one eyepiece. Anti-slip ring on lens and cap. Stage with clamps. Lighting with independent switches. Stable, robust, reinforced and easy to transport. Two interchangeable plates: opaque glass, for transmitted light and double-sided white / black, for incident light. |
Applications | Education: Lower grade level. |
Accessories Included | Power cord Dust cover |
Warranty | 10 Years |
