Vendor: LW Scientific

DM on Pneumatic Arm

$1,305.00 USD

$1,200.00 USD

SALE

Magnification: 10x / 20x

10x / 20x

Product variants

Low stock: 2 left

SKU: DMM-S12N-PA77

Quantity

Delivery times vary by product and destination. See our Shipping Policy.

Returns require a Return Authorization (RA) number and may be subject to restocking fees. See our Return & Refund Policy.

Compra 100% segura

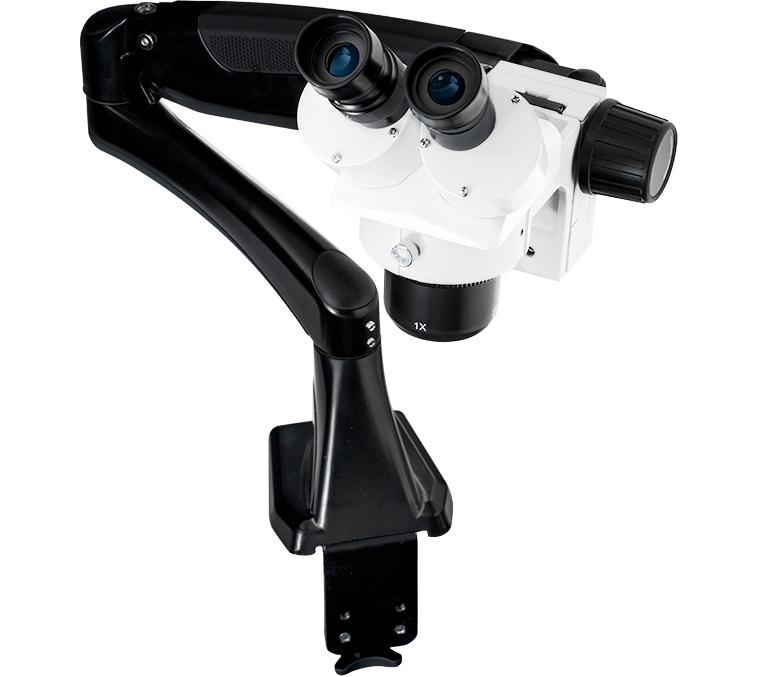

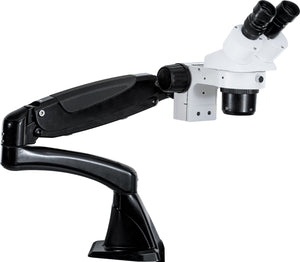

DM on Pneumatic Arm

The DM Dual Mag stereoscope together with the Pneu (new) Flex Arm is a symbol of functionality and ingenuity, allowing vertical, horizontal, and complete 360° adjustments. This versatile system gives you control of your space and the knowledge that your scope is secure. The DM’s large optics produce increased width, working distance and depth of focus. The included 0.5 supplementary lens doubles your field of view, expands your magnification options, and extends your working distance for hands-under work-space. The recommended 48-bulb LED ring light focuses bright, cool, shadow-free daylight illumination directly onto your work. The DM is the best quality dual-magnification scope in the dental, electronic, and industrial markets.

Constructions	Aluminum alloy construction Acid and reagent resistant finish
Head	Binocular, dual mag 10/20, 10/30, 20/40 Inclined 45°, rotates 360° 10X/20 WF eyepieces 30mm eye tube diameter Interpupillary distance adjustment 55-75mm Optional 5X, 15X, and 20X eyepieces
Objetives	1X/2X, 1X/3X, or 2X/4X paired objectives 0.5X supplementary lens included Protective lens available
Adjustment controls	Rack & pinion focusing Tension adjustment on pneumatic horizontal arm Adjustable-width c-clamp for mounting to a bench Optional screw-down table flange for direct bench mount
illumination	Ambient bench light may be sufficient Optional ring lights offer shadow-free illumination and are highly recommende
Weight and dims	DM Head: 2.6lbs (2.54kg) Pneumatic Arm: 13.89lbs (6.3kg) Maximum Radius: 14.96’’ (380mm) Minimum Radius: 10.83’’ (275mm)
