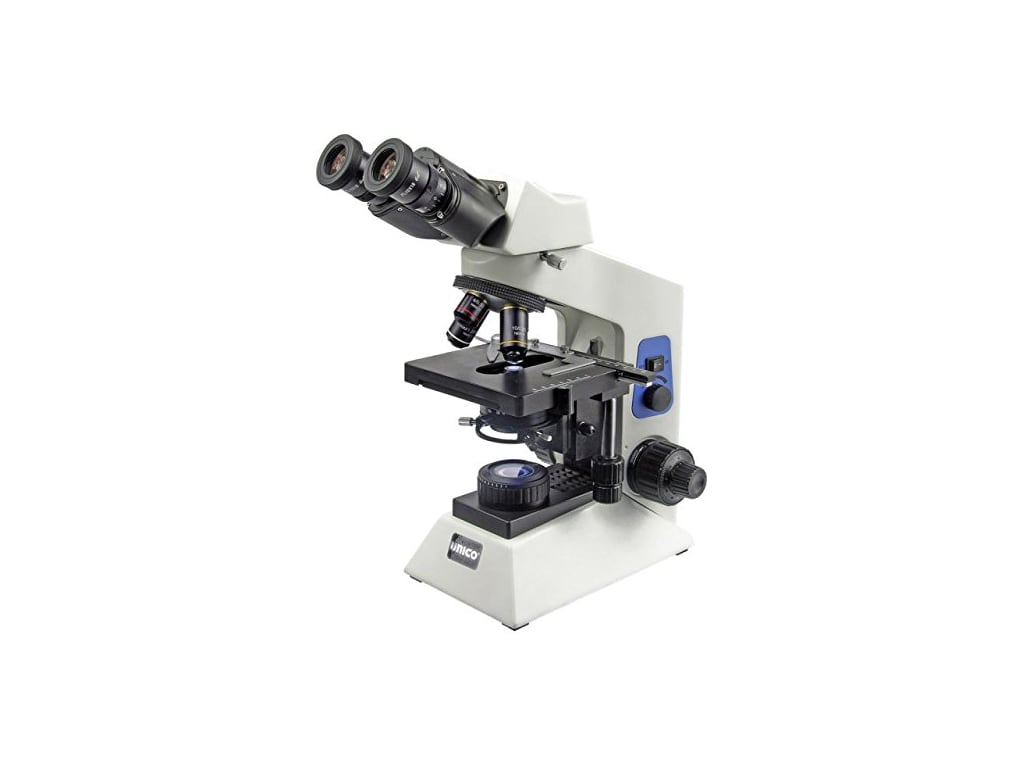

Unico G505 Binocular Phase Contrast Microscope with 10x, 20x, 40x and 100x Plan Phase, and 4x Brightfield Objectives
Viewing unstained transparent or translucent specimens has never been easier or more effective. The G500 includes easy to use Phase Sliders (10x/40x and 20x/100x) that mount in the condenser by simply sliding them from one side to the other. No more aligning screws, just simplicity. The G500 Series Advanced Microscopes are full-featured, versatile and scalable. Designed for users who applications require them to spend extended time viewing through the microscope. An LED illuminated series with options ranging from standard Brightfield, to Phase Contrast, Polarizing and Epi-Fluorescence. G500’s features a unique combination system of Graduated Iris Diaphragm mounted in the Condenser, paired with a Graduated Koehler Field Iris built into the Illuminator housing. These features allow maximum illumination control, perfect for viewing unstained specimens. The graduations also allow a multi-user practice to set both Irises at the optimal setting based on the specimen type being viewed insuring consistent viewing parameters.
| Head | Binocular |
| Eyepiece | 10X WF(2)Hi-EP |
| Objectives | 4,10,40,100X Plan Phase 4X Brightfield |
| Condenser | NA 1.25 |
| Diaphragm | Iris |
| Stage | Mechanical |
| Illumination | 3 Watt LED |
| Focusing | Coaxial |
| Actual Size | 16”H x 6“Wx 12”D |
| Net Weight | 14.5 lbs |
