VELAB

VE-B15 Biological Trinocular Microscope w/ Plan-Achromatic Optics and Infinity Correction

sku: VE-B15

$924.30 USD $1,027.00 USD
  • VE-B15 Biological Trinocular Microscope w/ Plan-Achromatic Optics and Infinity Correction

VELAB

VE-B15 Biological Trinocular Microscope w/ Plan-Achromatic Optics and Infinity Correction

sku: VE-B15

$924.30 USD $1,027.00 USD

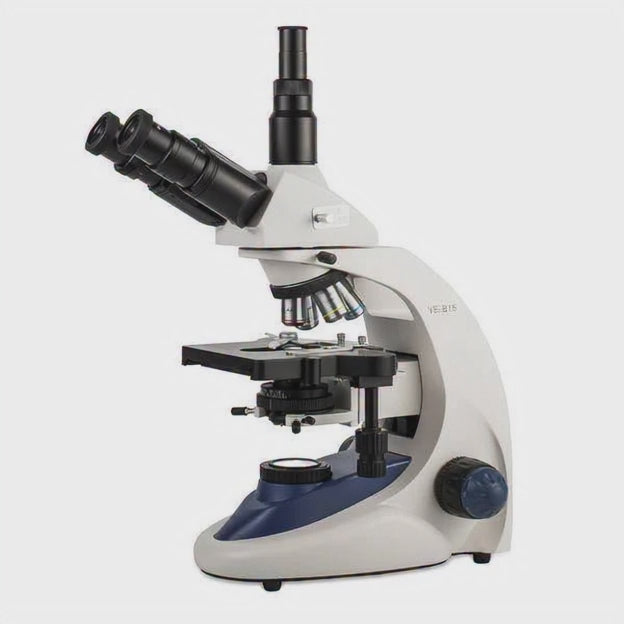

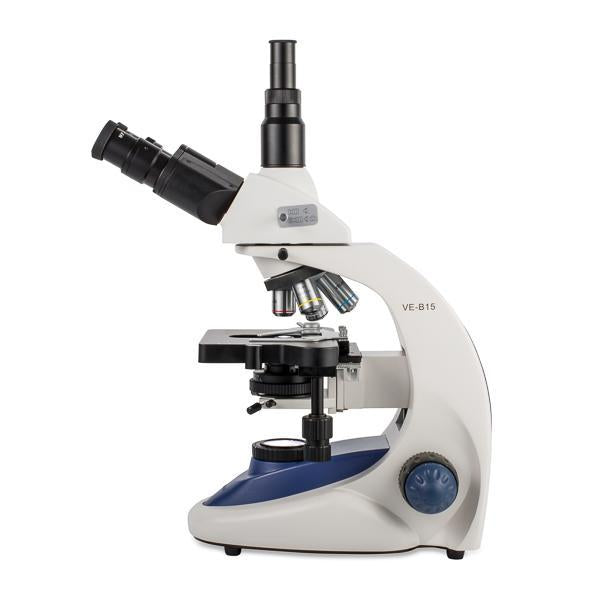

The VE-B15 is a trinocular microscope, ideal for research, higher education and routine work in clinical laboratories. Its plan achromatic objectives with infinite correction offer improvement of optical aberrations for the observation of higher quality images. It has objectives that provide a wide field of observation and its Kohler LED lighting makes it a very complete and versatile device.

It is adaptable to the needs of the user, its third eyepiece allows the integration of digital devices for data storage and it is also compatible with the optional configuration for the polarization set.

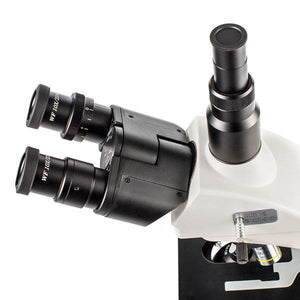

EYEPIECES: WF 10X/22mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Triocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.

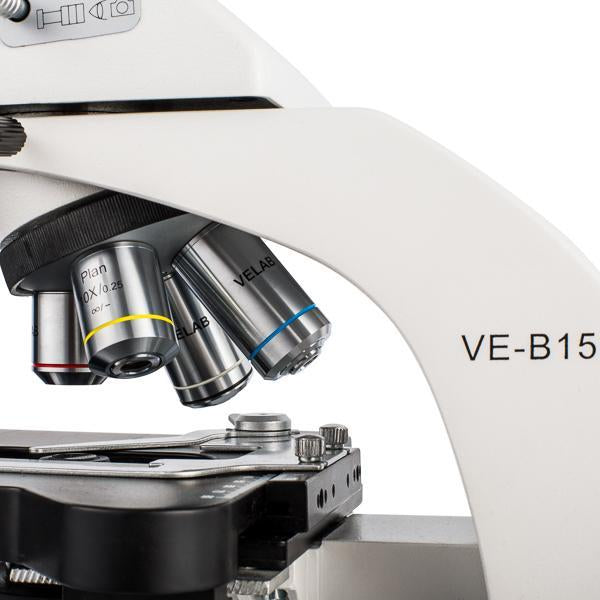

OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics, metallic finish and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler LED with variable intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43″ x 19.88″ x

Accessories Included:

  • Blue, green and yellow filters.
  • Dust cover.
  • Immersion oil.
  • Operation manual.
  • Power cord.
