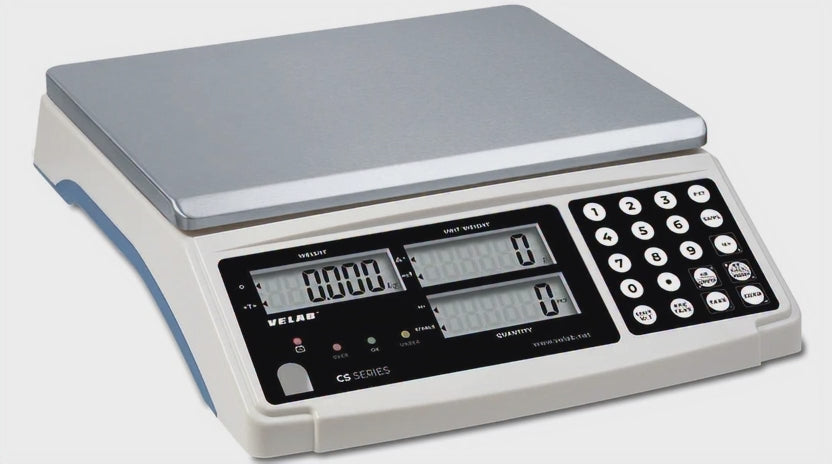

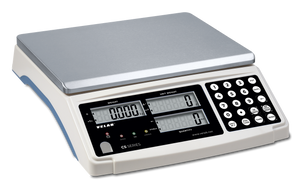

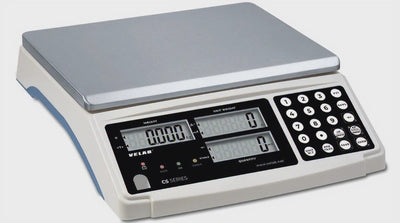

The CS series counting scale is ideal for industrial and manufacturing parts counting applications. CS series counting scales are conveniently portable, offer a large stainless steel pan, three large high contrast LCD displays showing weight, unit weight and count, and are simple to use. The CS series is ideal for packaging, inventory counting, small parts manufacturing, shipping and receiving, warehousing, and other production facilities.
Model | VE-CS6S | VE-CS15S | VE-CS30S |
Capacity | 6 kg / 12 lb | 15 kg / 30 lb | 30 kg / 60 lb |
Readability | 0.2 g / 0.0005 lb | 0.5 g / 0.001 lb | 1 g / 0.002 lb |
Repeatability | ±0.4 g | ±1 g | ±2 g |
Linearity | ±0.4 g | ±1 g | ±2 g |
Weighing units: | g, kg, lb | ||
Calibration: | External | ||
Pan Size | 300 x 232mm / 11.8” x 9.1” | ||
Stabilization Time: | 2 seconds | ||
Interface: | RS232 | ||
Display: | LCD, digit height 20mm / 0.787” | ||
Housing: | ABS plastic | ||
Operating Environment: | 10° to 40°C / 50° to 104°F | ||
Overall Dimensions: | 360 × 300 x 110mm /14.2” x 12” x 4.3” | ||
Weight: | 3.7 kg / 8.157 lb | ||
Power Supply: | 110/240V, 50/60 Hz AC Adapter and rechargeable battery | ||
| Features | High contrast LCD screen. Full range tare function. Auto shut-off. Robust ABS housing. Large stainless steel pan. Leveling feet: two back feet. Multiple weighing units Interfase RS232. | ||
| Standard Functions | Weighing Checkweighing Parts counting Accumulation | ||
| Accessories included | Power adaptor Clear protective cover Rechargeable battery | ||
Warranty | 1 year | ||
