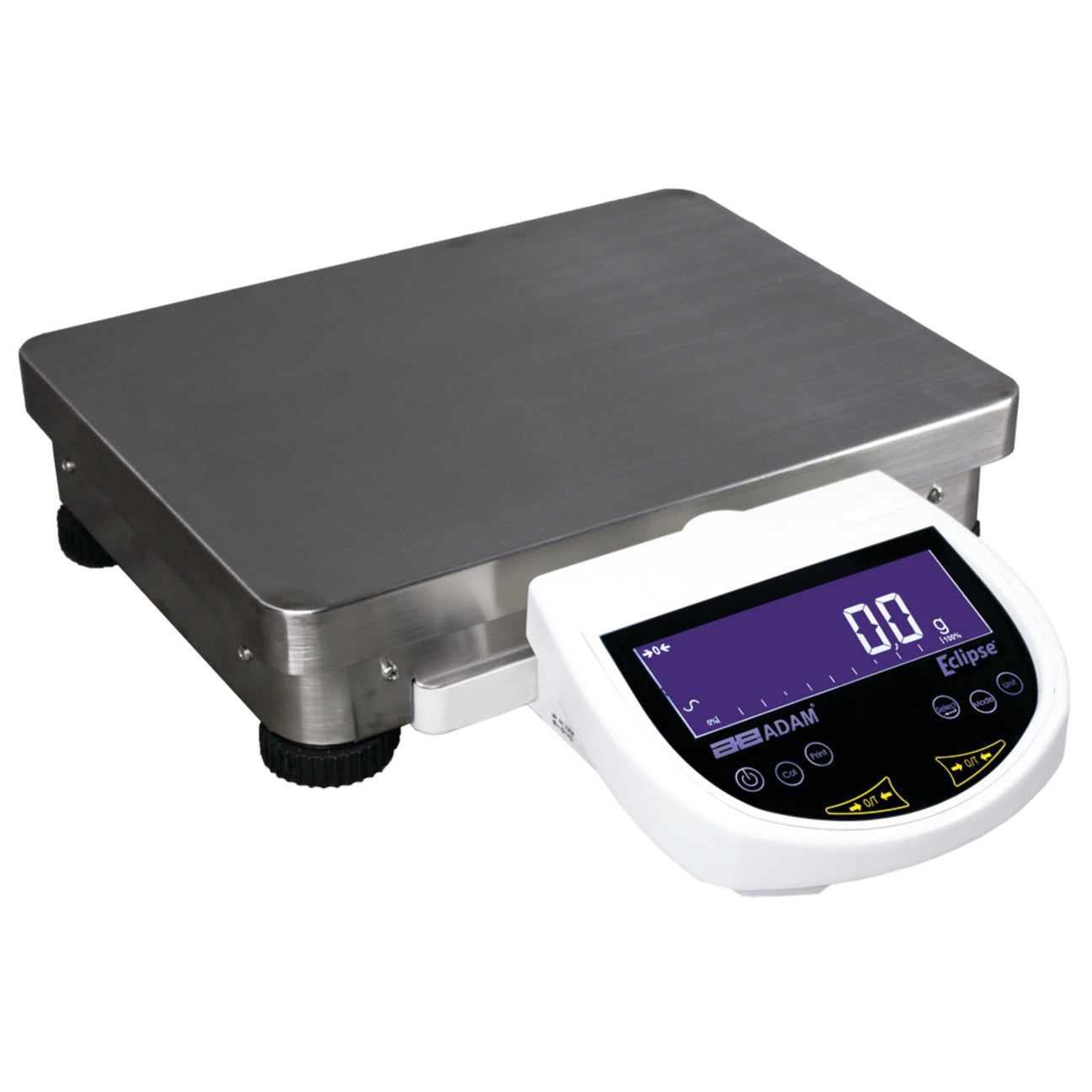

Adam Equipment EBL 22001e Eclipse® Heavy Duty Precision Balances, 22000 g x 0.1 g
Eclipse precision balances offer capacities of 220g to 32000g and readabilities of 1mg, 0.01g and 0.1g. A capacitive touch keypad contains illuminated keys, which provide intuitive navigation of the balance’s
functions. Featuring one of the largest LCD readouts in the industry, the Eclipse displays sizeable white digits on a dark background, ensuring exceptional visibility. Clear, discernible symbols and multilingual
text enable easy operation, while prompts simplify even the most complex activities. Small pan precision models have a compact footprint, so the balance occupies minimal space on the laboratory
work bench. Connectivity, whether it’s basic data printing or advanced communication with a LIMS, is achieved with USB and RS-232 interfaces. Printouts with time, date, and other information are provided
to comply with GLP requirements. Eclipse models offer the choice of internal or external calibration.
Capacity | 22000g |
Readability | 0.1g |
Repeatability | 0.2g |
Weighing Units | g, kg, ct, GN, N, dr, lb, oz, ozt, dwt, mm, tl.T, tl.H, tl.S, ti, T, custom unit |
Calibration | External calibration |
Stabilization Time | 3 |
Pan Size | 15.7"x11.8" / 400x300mm |
Linearity | 0.4g |
Power Supply | 18VDC 830mA adapter |
Construction | Extruded aluminum base with a die-cast aluminum case |
Interface | RS-232, USB |
Operating Temperature | 15° to 35°C / 59° to 95°F |
Net Weight | 16.1lb / 7.3kg |
Overall Dimensions | 15.8"x19.7"x23.6" / 401x500x600mm (wxdxh) |
Approvals | N/A |
Display Digit Height | 0.9" / 24mm |
