Jeio Tech
Incubated Shakers (Floor)
Delivery times vary by product and destination. See our Shipping Policy.
Returns require a Return Authorization (RA) number and may be subject to restocking fees. See our Return & Refund Policy.
Compra 100% segura

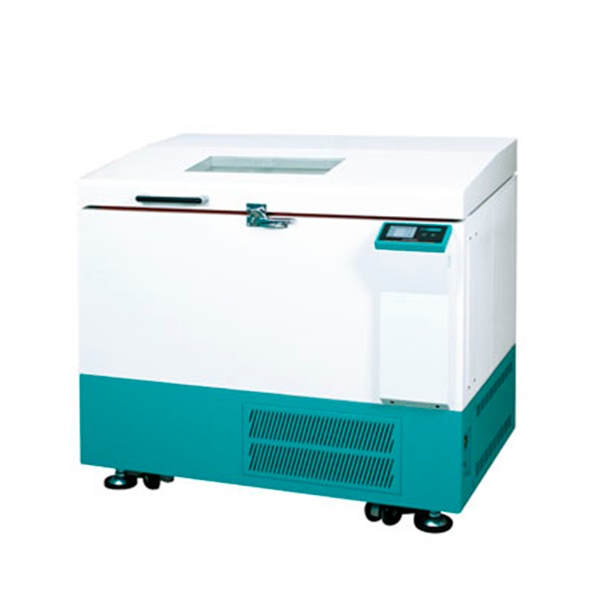

Incubated Shakers (Floor)
Large capacity up to five 6L flasks and heavy workload shaking with rapid heating and cooling performance.
Exclusive drive mechanism with ergonomic design delivers years of trouble-free service.
| Model | ISF-7100 | ISF-7100R | ISF-7200 | ISF-7200R | |||
|---|---|---|---|---|---|---|---|
| Temperature | Range (℃ / ℉) 1) |
Amb. +5 to 80 /Amb. +9 to 176 |
Amb. -20 (Min. 4) to 80
/Amb. -36 (Min. 7.2) to 176
|
Amb. +5 to 80 /Amb. +9 to 176 |
Amb. -20 (Min. 4) to 80 / Amb. -36 (Min. 7.2) to 176 |
||
| Fluctuation at 37℃ in flask (±℃ / ℉) | 0.1 / 0.18 | ||||||
| Variation at 37℃ in flask (±℃ / ℉) | 0.5 / 0.9 | ||||||
| Refrigerator (Hp) | - | 1/6Hp | - | 1/6Hp | |||
| Shaking system | Motion type | Orbital | |||||
| Speed range (rpm) | 30 to 500 | 30 to 300 | |||||
| Max. speed per permissible load (rpm) |
500 (max. 15 kg / 33.1 Ibs) 400 (max. 25 kg / 55.1 Ibs) 350 (max. 35 kg / 77.2 Ibs) |
300 (max. 20 kg / 44.1 Ibs) 200 (max. 35 kg / 77.2 Ibs) |
|||||
| Amplitude size (mm / inch, dia.) | 25.4 / 1 | 50.8 / 2 | |||||
| Speed stability 2)(rpm, %) | ±1 | ±1 | |||||
| Timer (count-down) | 999 hr 59 min. | 999 hr 59 min. | |||||
| Dimension | Chamber volume (L / cu ft) | 270 / 9.5 | |||||
| Platform (W×D) (mm / inch) | 755×520 / 29.7×20.5 | ||||||
| Interior (W×D×H) (mm / inch) | 894×634×480 / 35.2×25×18.9 | ||||||
| Exterior (W×D×H) (mm / inch) | 1128×854x1035 / 44.4x33.6x40.8 | ||||||
| Net weight (Kg / lbs) | 277 / 610.7 | 287 / 632.7 | 277 / 610.7 | 287 / 632.7 | |||
| Electrical requirements (120V, 60Hz) | 7.3A | 10A | 7.3A | 10A | |||
| Cat. No. | AAH23375U | AAH23575U | AAH23475U | AAH23675U | |||
| Incubated Shakers (Floor) |
ISF-7100, ISF-7100R, ISF-7200, ISF-7200R |
|---|
