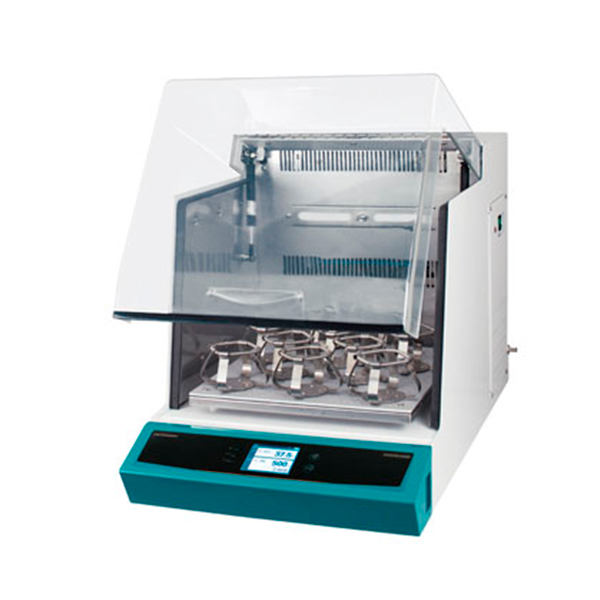

Incubated Shakers (Tabletop)

Temperature

Range (℃ / ℉)

Amb. +5 to 80

/ Amb. +9 to 176

Amb. -15 (Min. 15) to 80

/Amb. -27 (Min. 27) to 176

Amb. +5 to 80

/ Amb. +9 to 176

Amb. -15 (Min. 15) to 80

/Amb. -27 (Min. 27) to 176

Fluctuationat 37℃ in flask
(±℃ / ℉)

0.1 / 0.18

Variationat 37℃ in flask
(±℃ / ℉)

0.5 / 0.90

Refrigerator (Hp)

-

1 / 6 HBP

-

1 / 6 HBP

Shaking system

Motion type

Orbital

Amplitude size (mm / inch, dia.)

19.1 / 0.75

Speed range (RPM)

20 to 500

Accuracy

±1% of set speed (>100rpm) / ±1 (≤100rpm)

Timer

1 min. to 999 hr 59 min.

Max. load (kg / Ibs)

10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm

14 / 30.9 at 500 rpm21 / 46.3 at 400 rpm

Dimension

Volume (L / cu ft)

53 / 1.9

83 / 2.9

Platform (W×D) (mm / inch)

350×350 / 13.8×13.8

450×450 / 17.7×17.7

Interior (W×D×H) (mm / inch)

410×410×320 / 16.1×16.1×12.6

510×510×320 / 20.1×20.1×12.6

Exterior (W×D×H) (mm / inch)

440x785x510 / 17.3x30.9x20.1

540x 890 x510 / 21.3x35x20.1

Net weight (Kg / lbs)

65 / 143.3

73 / 160.9

81 / 178.6

90 / 198.4
