Jeio Tech

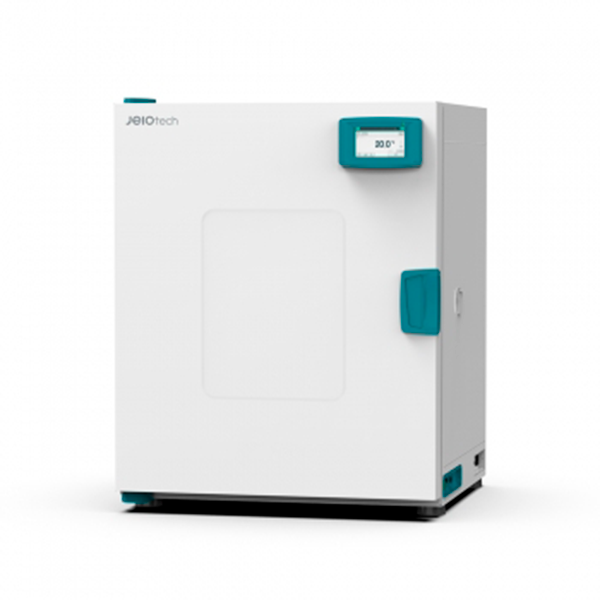

Incubator, Air-jacket (Standard, IB4-AS)
Delivery times vary by product and destination. See our Shipping Policy.
Returns require a Return Authorization (RA) number and may be subject to restocking fees. See our Return & Refund Policy.
Compra 100% segura
Incubator, Air-jacket (Standard, IB4-AS)
Intuitive Touch Controller
- Intuitive interface with 3.5-inch display.
- 'Wait on / Wait off' timer function.
| Model | IB4-03AS | IB4-05AS | IB4-10AS | IB4-15AS | |
|---|---|---|---|---|---|
| Chamber volume (L / cu ft) | 25 / 0.88 | 60 / 2.19 | 114 / 4.03 | 150 / 5.30 | |
| Temperature | Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 | |||
| Fluctuation at 37℃ (±℃ / ℉) | 0.10 / 0.18 | 0.10 / 0.18 | 0.15 / 0.27 | 0.10 / 0.18 | |
| Variation at 37℃ (±℃ / ℉) | 0.31 / 0.56 | 0.48 / 0.86 | 0.46 / 0.83 | 0.55 / 0.99 | |
| Heating time to 37℃ (min.) 1) | 44 | 40 | 46 | 49 | |
| Recovery time at 37℃ (min.) | 5 | 9 | 9 | 9 | |
| Control panel | 3.5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 (option) | ||||
| Function | Recently event record | 12 ea | |||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 300 x 210 x 400 /11.81 x 8.27 x 15.75 |
380 x 330 x 480 /14.96 x 12.99 x 18.9 |
485 x 350 x 655 / 19.1 x 13.78 x 25.79 |
550 x 376 x 710 / 21.62 x 14.8 x 27.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 32 / 68.34 | 40 / 88.18 | 55 / 121.25 | 60 / 132.28 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Electrical requirements (120V, 60Hz, A) | 4.8 | 6.7 | 6.7 | 6.7 |
|
| Cat. No. |
AAH21553U | AAH21563U | AAH21573U | AAH21583U | |
| Incubator, Air-jacket (Standard, IB4-AS) |
IB4-03AS, IB4-05AS, IB4-10AS, IB4-15AS |
|---|
