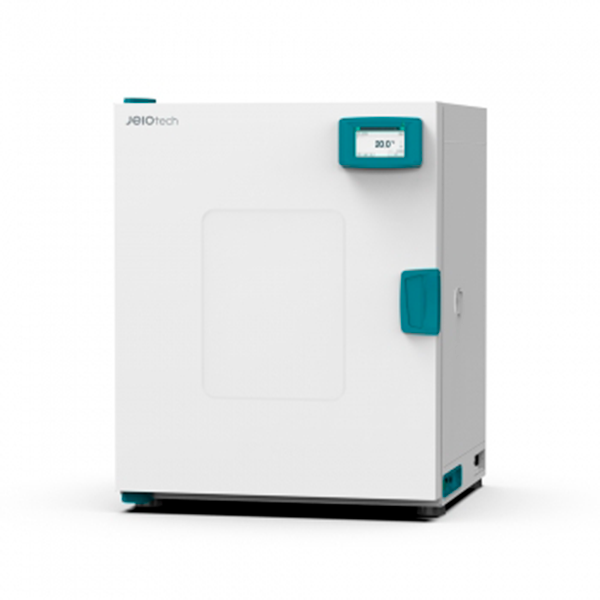

Incubator, Forced Convection (Advanced, IB4-V)
Uniform temperature distribution through airflow optimized for uniform heat transfer and Opti-flow™, the fan speed control function based on sample and testing conditions
| Model | IB4-03V | IB4-05V | IB4-10V | IB4-15V | ||
|---|---|---|---|---|---|---|
| Chamber volume (L / cu ft) | 25 / 0.88 | 60 / 2.12 | 111 / 3.92 | 146 / 5.16 | ||
| Temperature | Range (℃ / ℉) | Amb. +51) to 80 / Amb. +9 to 176 |
||||
| Fluctuation at 37℃ (±℃ / ℉) | 0.10 / 0.18 | 0.15 / 0.27 | 0.10 / 0.18 | 0.10 / 0.18 | ||
| Variation at 37℃ (±℃ / ℉) | 0.23 / 0.41 | 0.41 / 0.74 | 0.39 / 0.70 | 0.35 / 0.63 | ||
| Heating time to 37℃ (min.) 1) | 5 | 4 | 8 | 7 | ||
| Recovery time at 37℃ (min.) | 5 | 4 | 4 | 3 | ||
| Control panel | 5 inch TFT Color LCD | |||||
| Communication interface | USB-B, RS-232 | |||||
| Function | Recently event record | 36 ea | ||||
| Recommended temperature | Suggest three frequently used temperature | |||||
| Graph | Available viewing stored and real-time graphs | |||||
| Data storage | Save your experiment data (in CSV format) | |||||
| Temp. ramping rate (℃/min. | ℉/min) | 0 to 8.0 | 0 to 14.4 | 0 to 6.0 | 0 to 10.8 | 0 to 5.0 | 0 to 9.0 | 0 to 4.0 | 0 to 7.2 | ||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 300 x 210 x 400 /11.81 x 8.27 x 15.75 |
380 x 330 x 480 /14.96 x 12.99 x 18.9 |
485 x 350 x 655 / 19.1 x 13.78 x 25.79 |
550 x 376 x 710 / 21.62 x 14.8 x 27.95 |
|
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
||
| Net weight (Kg / lbs) | 32 / 70.55 | 41 / 90.39 | 56 / 123.46 | 62 / 136.69 | ||
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 | |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | ||
| Electrical requirements (120V, 60Hz, A) | 5.8 |
|||||
| Cat. No. |
AAH21653U | AAH21663U | AAH21673U | AAH21683U | ||
| Incubator, Forced Convection (Advanced, IB4-V) |
IB4-03V, IB4-05V, IB4-10V, IB4-15V |
|---|
