Dlab

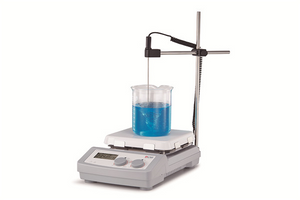

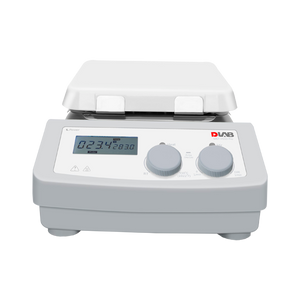

MS7-H550-Pro LCD Digital 7’’ Square Hotplate Magnetic Stirrer

SKU: MS7-H550-Pro

$368.00 USD $618.00 USD
  • MS7-H550-Pro LCD Digital 7’’ Square Hotplate Magnetic Stirrer

Dlab

MS7-H550-Pro LCD Digital 7’’ Square Hotplate Magnetic Stirrer

SKU: MS7-H550-Pro

$368.00 USD $618.00 USD

•   LCD display for precise monitoring of speed and temperature
•   Built-in PID controller ensures safe heating of the medium with overheating protection
•   Max. heating plate temperature 550°C
•   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
•   External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C
•   Digital speed controlling, max. speed at 1500rpm
•   Outstanding brushless DC motor enables more stirring power
•   Two rotating knobs enable easy adjustment of speed and temperature
•   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
•   Remote function provides PC control and data transmission

Specifications MS7-H550-Pro
Work plate Dimension [W x D] 184x184mm (7 inch)
Work plate material Glass ceramic
Motor type Brushless DC motor
Motor rating input 18W
Motor rating output 10W
Power 1050W
Heating output 1000W
Voltage 100-120/200-240V  50/60Hz
Stirring positions 1
Max. stirring quantity, [H2O] 20L
Max. magnetic bar[length] 80mm
Speed range 100-1500rpm
resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-550°C,increment 1°C
Temperature  control accuracy ±1 °C (<100°C) ±1%(>100°C)
Overheating protection 580°C
Temperature  display accuracy ±0.1°C
External  temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Data connector  RS232
Protection class IP21
Dimension [WxDxH] 215x360x112mm
Weight 5.3kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
