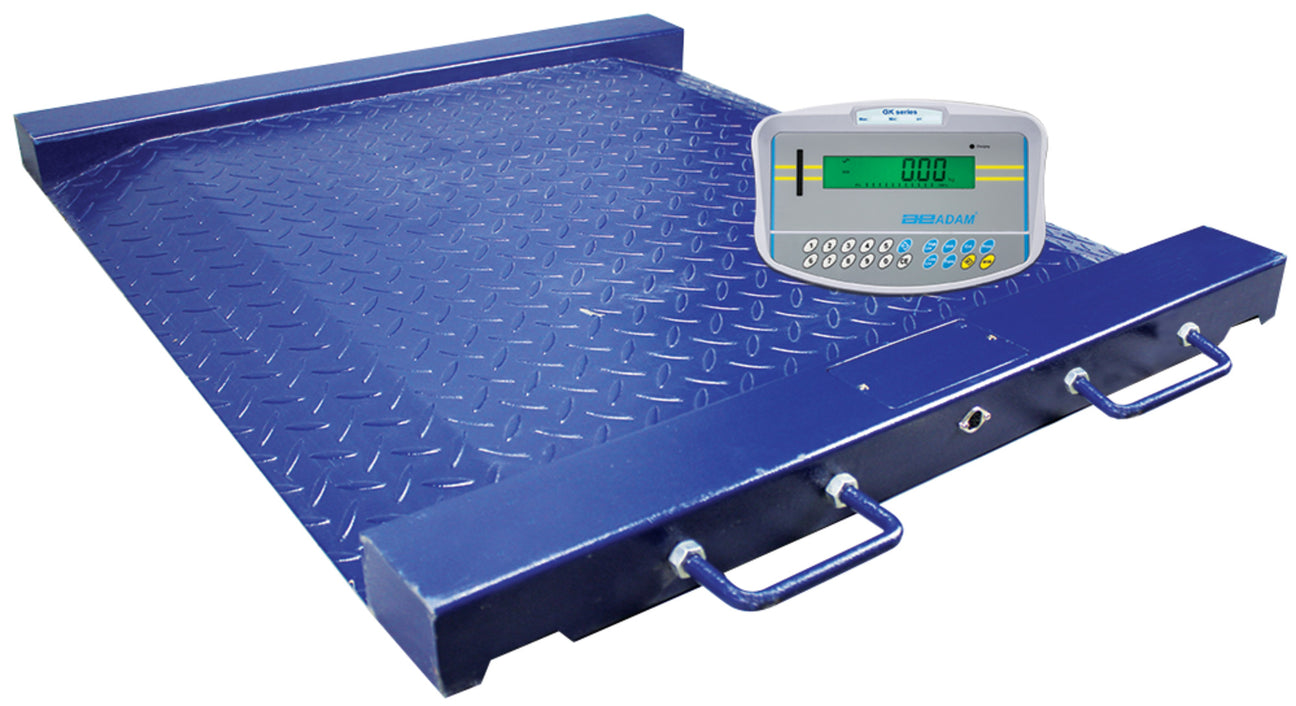

Adam Equipment PTM 500 [GK] PTM Drum and Wheelchair Platforms, 1100 lb x 0.2 lb
The PTM wheelchair scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform and is suitable for use in warehouses or medical facilities.
PTM drum and wheelchair scales are ideal for checking the weight of wheelchair occupants, barrels and drums, or loaded dollies. Its diamond plate surface provides good grip and a solid, steady weighing area. Handles and wheels enable easy accessibility in a wide range of environments from doctors surgeries, health centres and elderly care homes to warehouse and factory floors.
The PTM is available with the GK indicator or AE 403 indicator, offering a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE 403 is IP67 rated for dusty and wet environments.
Specifications
Capacity | 1100lb / 500kg |
Repeatability | 0.4lb / 0.1kg |
Readability | 0.2lb / 0.1kg |
Linearity | 0.4lb / 0.2kg |
Weighing Units | kg, lb, lb:oz, oz, N |
Calibration | External calibration |
Stabilization Time | 2.0 |
Pan Size | 29.9"x22.8" / 760x580mm |
Construction | Mild steel base |
Net Weight | 78.2lb / 35.5kg |
Overall Dimensions | 40.2"x31.6"x3" / 1020x803x75mm (wxdxh) |
Display Digit Height | 0.8" / 20mm |
Approvals | N/A |
Interface | RS-232 |
Battery Life (Hours) | 70.0 |
Operating Temperature | -10° to 40°C / 14° to 104°F |
Power Supply | 12VDC 50/60Hz 3A adapter / Internal rechargeable battery |
