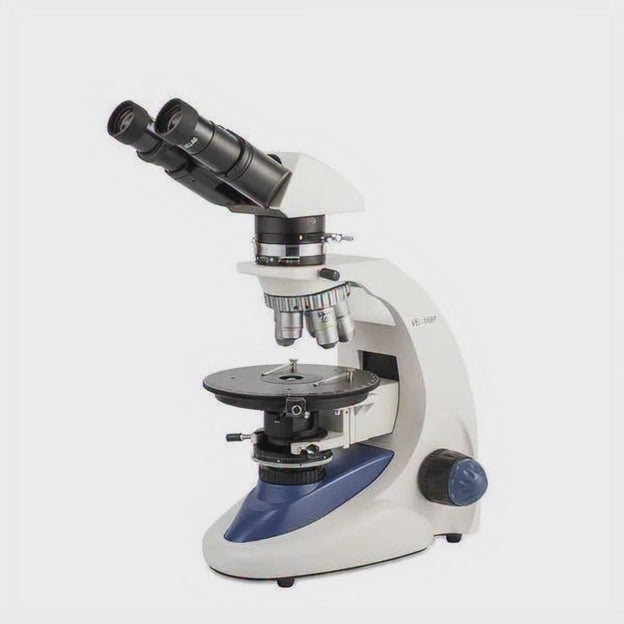

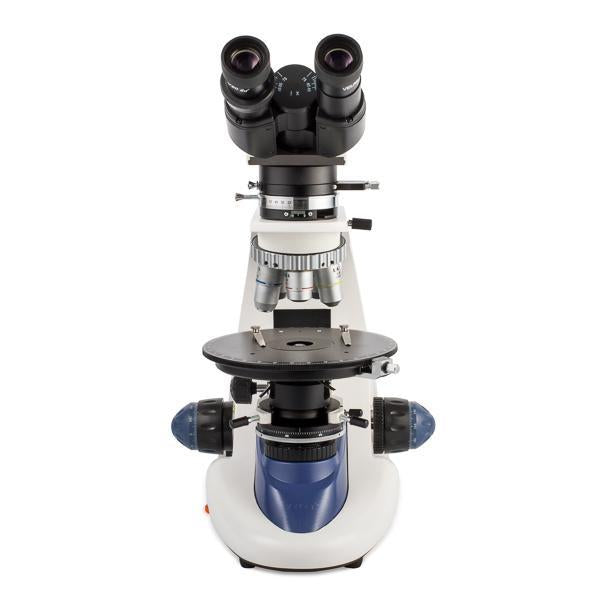

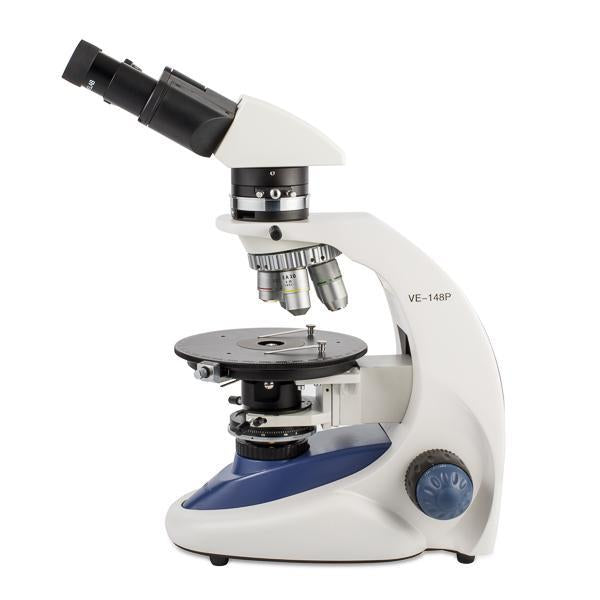

The VE-148P is a professional polarized light microscope, ideal for observing crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3 types of polarized light (conoscopic, simple and orthogonal) and has a rotating circular stage, divided by a 360° scale.
|EYEPIECES:||WF 10x/20mm with rubber eyecups and diopter adjustment on one eyepiece.|
|HEAD:||Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95” and Bertrand lens system.|
|NOSEPIECE:||Quintuple nosepiece with anti-slip ring and click-stops.|

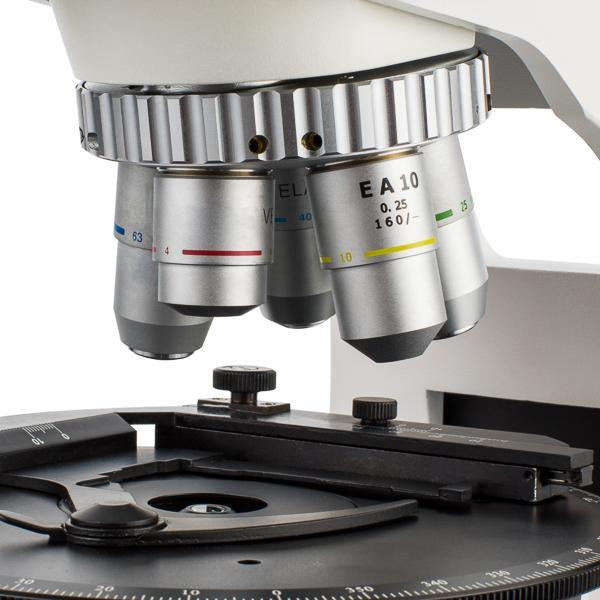

|OBJECTIVES:||4X, 10X, 25X (retractable), 40X (retractable) and 63X (retractable) with achromatic optics, metallic finish and color ring for easy identification.|
|STAND:||Stative, robust and reinforced with epoxy paint finish.|

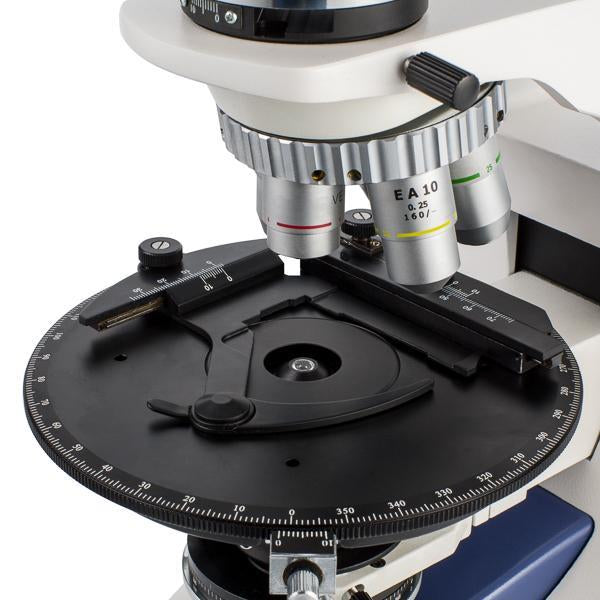

|STAGE:||Circular mechanics with 170 mm / 6.69” diameter, divided in 360° scale, goniometer and double sample adjustment option, two clips or removable mechanical stage with X-Y movement.|
|CONDENSER:||Abbe, A.N. 1.3 of oscillation.|
|DIAPHRAGM:||Iris with filter holder.|
|FOCUSING:||Coarse and fine anti-slip control knob with tension adjustment.|
|ILLUMINATION:||Kohler halogen 12V/30W with variable intensity control and field diaphragm in the lamp.|
|POWER SUPPLY:||120V, 50/60 Hz AC adapter.|
|DIMENSIONS:||10.43″ x 18.30″ x 11.61″|

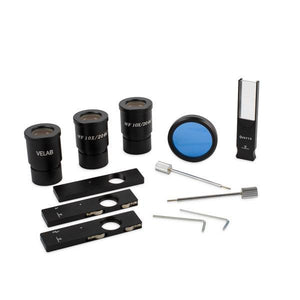

- 2 Allen wrenches.
- Dust cover.
- Power cord.
- Eyepiece 10X/20mm with grid reticle.
- Gypsum (1 λ), mica (1/4 λ), quartz wedge and cover dust filters.
- Micrometer eyepiece, DIV:0.1 mm.
- Stage micrometer.
- Eyepiece 10X/20mm with cross division reticle.
