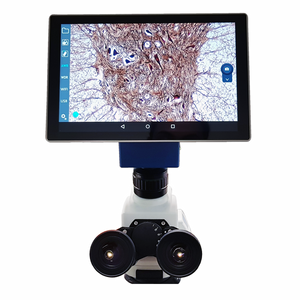

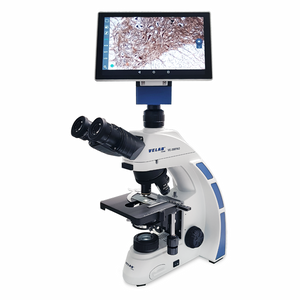

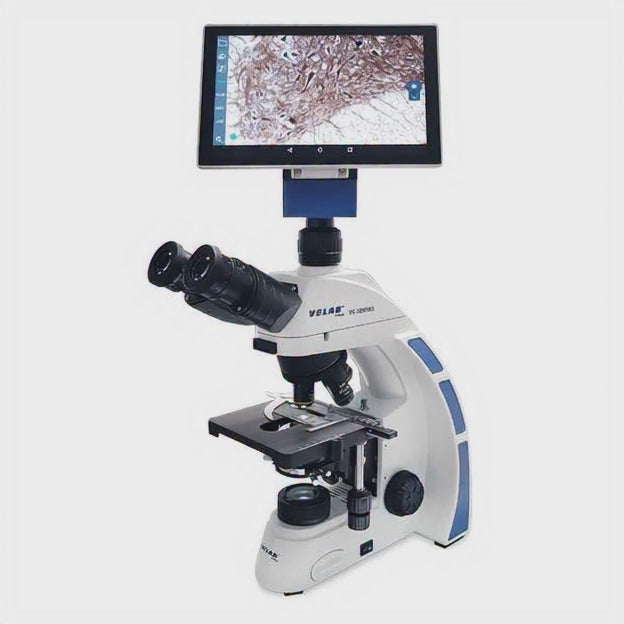

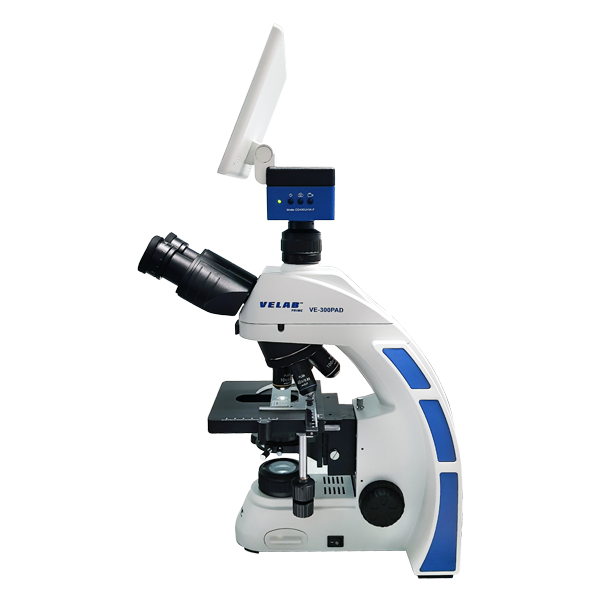

VE-300PAD Biological Binocular Microscope w/ 10.1" Integrated Tablet and 4.0 MP Digital Camera
Delivery times vary by product and destination. See our Shipping Policy.
Returns require a Return Authorization (RA) number and may be subject to restocking fees. See our Return & Refund Policy.
Compra 100% segura
Biological microscope designed for professional use. Used to identifying and analyzing substances and biological cultures in microbiology, biology, medicine and pathology. Ideal for research, higher education and routine clinical laboratory work. Equipped with the VESCOPEPAD 300 tablet, Android tablet. Includes 10.1 touch screen and the VELAB camera application for editing images.
|
Eyepiece |
PL 10X/20 mm. |
|
Nosepiece |
Quadruple |
|
Objectives |
4X, 10X, 40X (S), 100X (Oil) (S) |
|
Optical System |
Infinity-Corrected Plan Achromatic |
|
Stage |
Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9” x 5.5”. |
|
Diaphragm |
Iris type with filter holder. |
|
Focus |
Coarse and fine anti-slip control knob (precision 0.001 mm). |
|
Ilumination |
Kohler LED 3W. |
|
Dimensions |
Microscope: 185 x 396 x 290 mm / 7.2” x 15.5” x 11.4” Tablet: 248 x 210 x 116 mm / 9.7” x 8.2” x 4.5”. |
|
Power supply |
110/240V, 50/60 Hz AC adapter. |
|
Main Features |
Diopter adjustment in both eyepieces. Interpupillary distance of 50 - 75 mm. Heads inclined at 30 °. Stative, robust and reinforced. Easy to transport. Plates with vernier, millimeter scale and calipers. Objectives with colored rings. Lighting with intensity adjustment. Gemel type trinocular head. Equipped condenser for optional configurations (not included). Image transmission to various WiFi devices. Tablet equipped with basic editing and measurement software. Capture photo and video independently via WiFi. |
|
Applications |
Education: Upper grade levels |
|
Accessories Included |
USB cable 16 GB SD card HDMI cable Software C-mount type adapter AC/DC Adapter |
|
Warranty |
10 Years |
