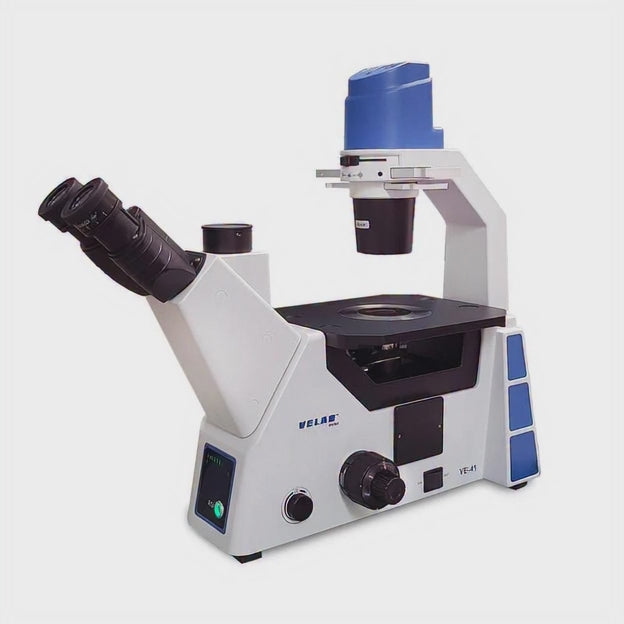

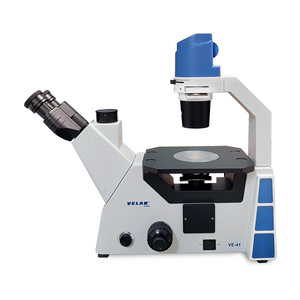

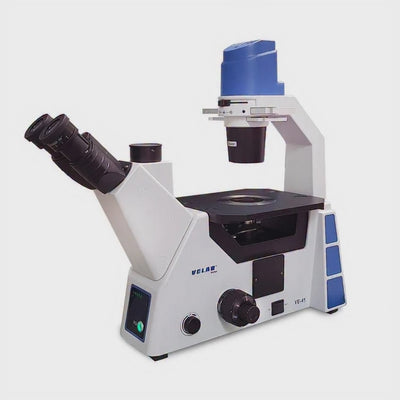

VE-41 Trinocular Inverted Microscope w/ Pahse Contrast Kit
Delivery times vary by product and destination. See our Shipping Policy.
Returns require a Return Authorization (RA) number and may be subject to restocking fees. See our Return & Refund Policy.
Compra 100% segura
VE-41 Trinocular Inverted Microscope w/ Pahse Contrast Kit
Professional inverted microscope with phase contrast emphasizes cellular outlines and internal structure to meet research needs. Ideal for different samples containers such as cultivationbottles, Petri dishes and microplates.
Ideal for cell cultures observation without previous preparation, activity and growth monitoring, as well as of biologics production and quality control (vaccines, medicines, sera, antisera and/ or reagents). Its trinocular head allows the adaptation of digital devices (not included) for imaging and video documentation.
|
Eyepieces |
PL 10X/22 mm. |
| Nosepieces |
Quintuple |
|
Objectives |
4X, 10X, 20XPH, 40X (S). |
|
Optical System |
Infinity-Corrected Plan Achromatic |
|
Stage |
Fixed, 250 x 215 mm / 9.8” x 8.4” with removable mechanical stage and extension to extend it. |
|
Condenser |
A.N. 0.3, long working distance. |
|
Diaphragm |
Iris type. |
|
Focus |
Coarse and fine anti-slip control knob (precision 0.001 mm). |
|
Ilumination |
LED 5W. It turns off if it is out of use for 30 minutes. |
|
Dimensions |
250 x 508 x 565 mm / 9.8” x 20” x 22.2” |
|
Power supply |
110/240V, 50/60 Hz AC adapter. |
|
Main Features |
Diopter adjustment on both eyepieces. Heads inclined at 45 ° with 360° rotable eyepiece tube. Gemel type trinocular head, with phototube for c-mount adapter, compatible with VELAB LX series cameras and VE-SCOPEPAD300 tablet Interpupillary distance of 50 - 75 mm. Objectives with colored rings. Lighting with intensity adjustment and power button. Sensor for auto-off, for saving energy. Stative, robust and reinforced. Optical correction PL, for the best viewing. |
|
Applications |
Education: Upper grade levels |
|
Accessories Included |
Cover dust Power cord. Support for 35 mm petri dishes. Metallic central plate. Stage extension. C-mount type adapter Immersion oil. Allen wrench Mechanical stage Centering telescope eyepiece. Blade 4X/10X/20X/40X for phase contrast. |
|
Warranty |
10 years |
