The ideal microscope for all kinds of basic and advanced techniques. The VE-B2 complies with the necessary characteristics for routine work in clinical laboratories. Its eyepieces provide a wide field of observation and its extensive stage allows a comfortable displacement through the sample.
Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
Eyepieces | WF 10X/20 mm. |
| Nosepieces | Quadruple |
Objectives | 4X, 10X, 40X (S), 100X (oil) (S). |
Optical System | Achromatic |
Stage | Double layer with coaxial movement X-Y 160 x 140 mm / 6.2” x 5.5”. |
Condenser | Abbe, N.A 1.25 with elevator. |
Diaphragm | Iris type. |

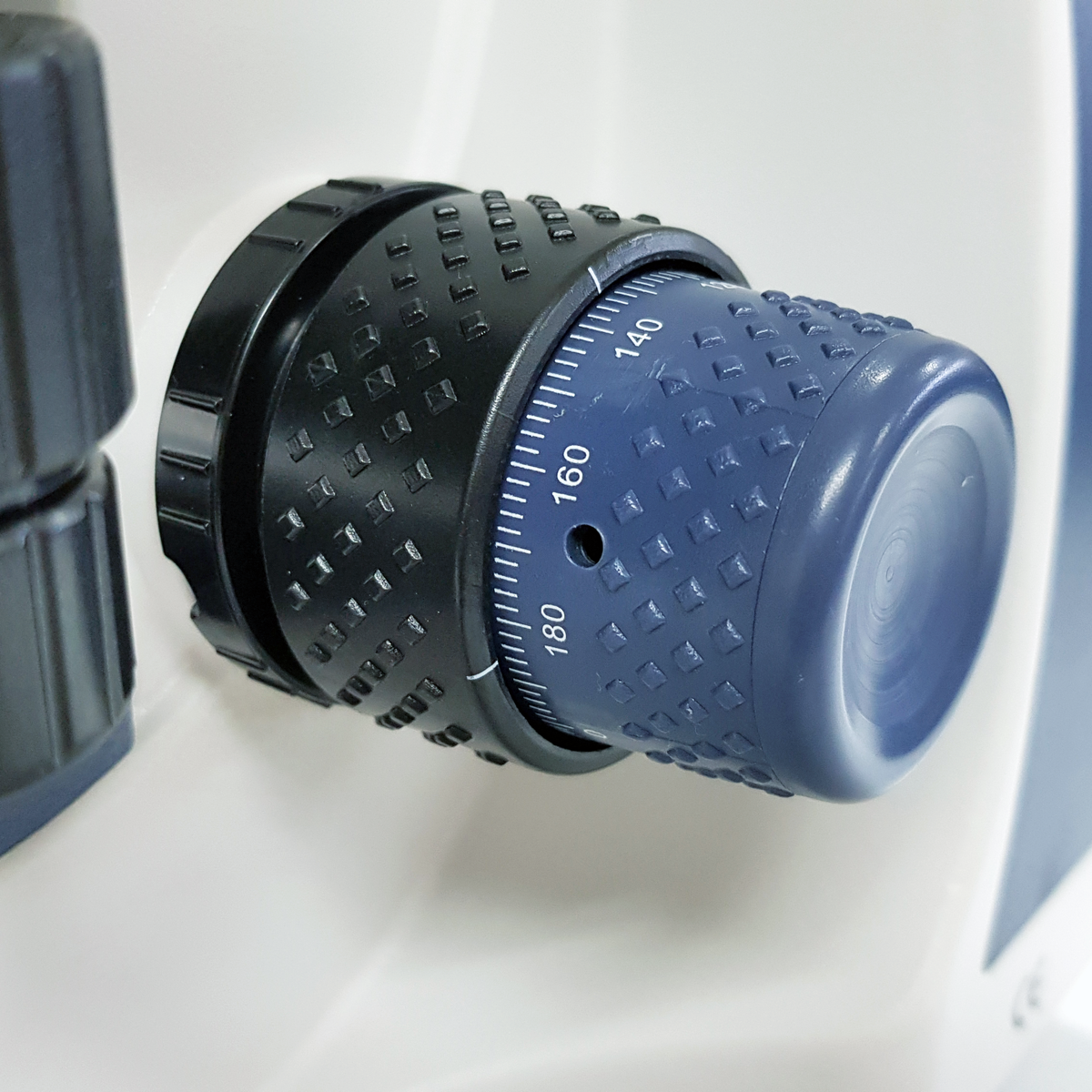

Focus | Coarse and fine anti-slip control knob. |
Ilumination | LED |
Dimensions | 200 x 420 x 280 mm / 7.8” x 16.7” x 11”. |
Power supply | Three 1.2V AA rechargeable batteries (included). |
Main Features | Diopter adjustment in one eyepiece. Stative, robust, reinforced and easy to transport. Siedentopf type Binocular Head. Lighting with intensity adjustment. Head inclined at 30 ° and rotatable 360 ° Rechargeable batteries incorporated into the stand. Interpupillary distance of 48 ~ 75 mm. Stage with vernier, millimeter scale, caliper and stop with height adjustment. Objectives with anti-slip and colored rings. |
Applications | Education: Upper grade levels |
Accessories Included | AC/CD Adapter |
Warranty | 10 years |
