The VE-B300 is a biological microscope designed for professional use. Ideal for the identification and analysis of substances and biological cultures in microbiology, biology, medicine and pathology.
It’s high quality, durability and modern design make the VE-B300 the ideal device applicable for professional in research, higher education and routine work in clinical laboratories. It has excellent optical quality components and long-life LED illumination. Adaptable to the needs of the user, the VE-B300 offers optional configurations for several applications.
TECHNICAL DATA
|
Eyepiece |

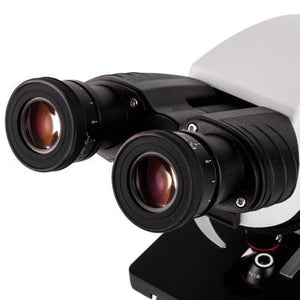

PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment on both eyepieces. |
|
Head |
Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 - 75 mm / 1.96”- 2.95”. |
| Nosepieces |
Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
|
Objectives |

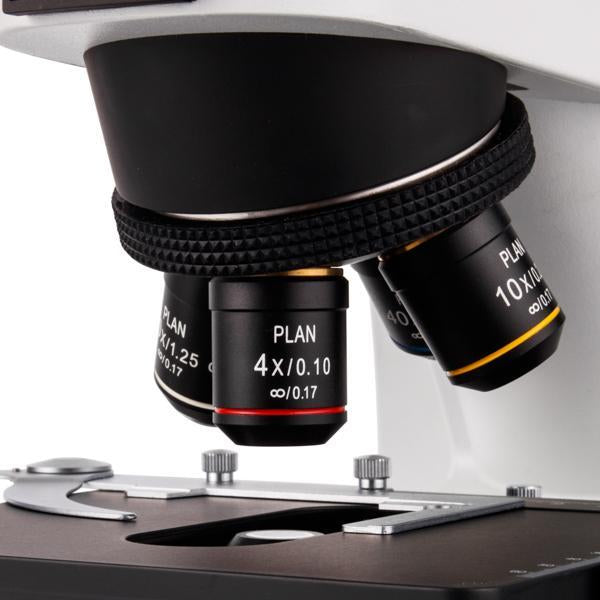

4X/0.10, 10X/0.25, 40X/0.65 (retractable) and 100X/1.25 (retractable) oil immersion with infinity corrected plan achromatic optics and color ring for easy identification. |
|
Stand |
Stative, robust and reinforced with epoxy paint finish. |
|
Stage |
Double plate with X-Y coaxial movement, 150 x 140mm / 5.90” x 5.51”, vernier, millimeter scale (88 x 60 mm / 3.46” x 2.36”), clamp and height adjustment with stop |
|
Condenser |

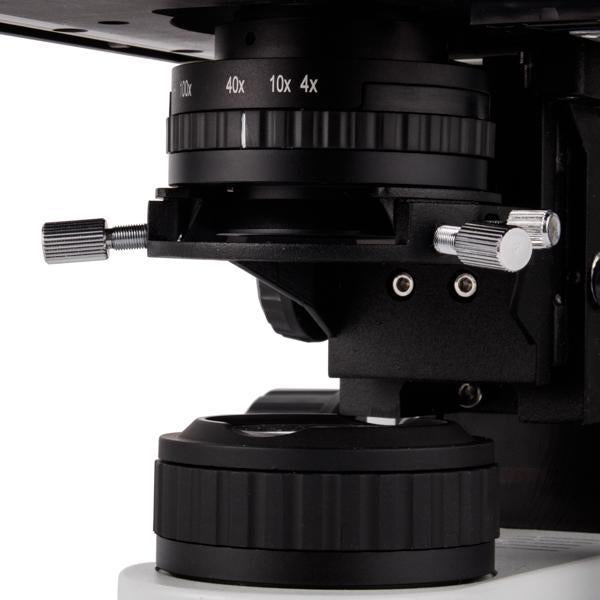

Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included). |
|
Diaphragm |
Iris type with filter holders. |
|
Focusing |
Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
|
Illumination |
3W Kohler LED with variable intensity control and field diaphragm in the lamp. |
|
Power supply |
120V, 50/60 Hz AC adapter. |
|
Accessories included |
Power cord. |
|
Accessories not included |
Phase contrast kit. |
