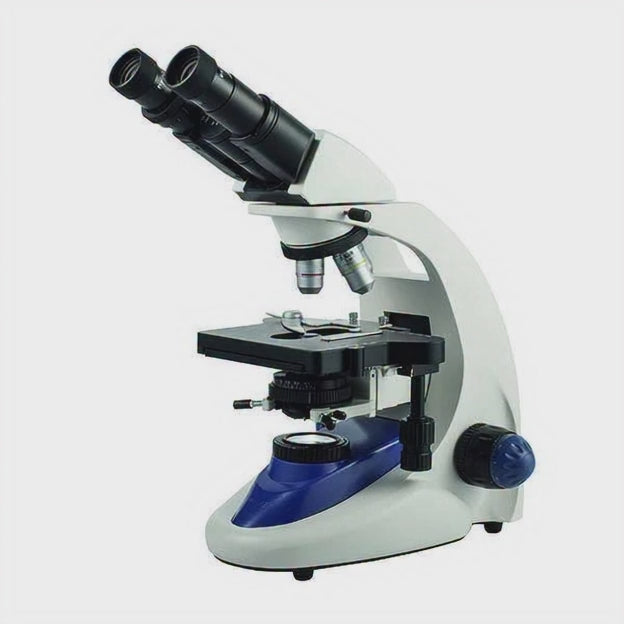

The VE-B4 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories.
Its semi-plan objectives offer correction of optical aberrations for the observation of higher quality images. The Kohler LED lighting makes it a very complete and versatile device.
The VE-B4 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
|EYEPIECES:||WF 10X/20mm with rubber eyecups diopter adjustment on one eyepiece|
|HEAD:||Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95”.|
|NOSEPIECE:||Quadruple nosepiece with anti-slip grip and click-stops.|

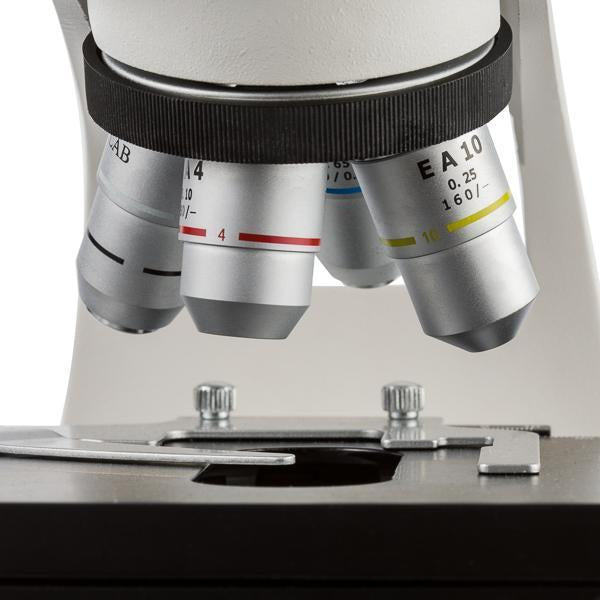

|OBJECTIVES:||4X, 10X, 40X (S) and 100X (S) (oil), semi-plan achromatic optics, metallic finish and color ring for easy identification.|
|STAND:||Stative, robust and reinforced with epoxy paint finish.|
|STAGE:||Two-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.|

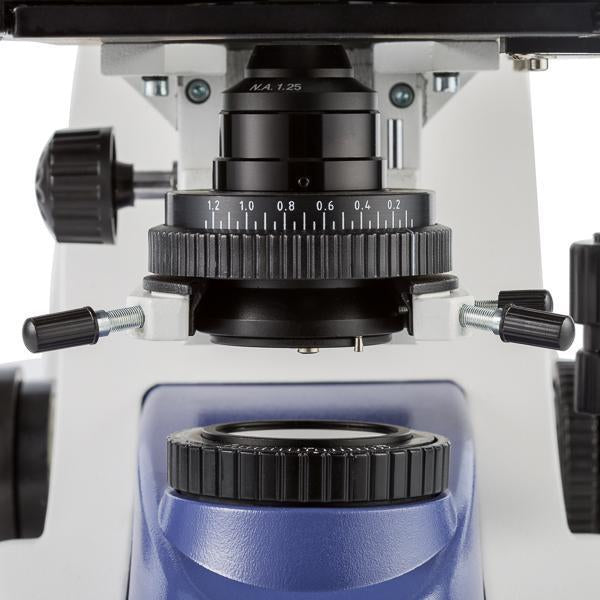

|CONDENSER:||Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).|
|DIAPHRAGM:||Iris with filter holder.|
|FOCUSING:||Coarse and fine anti-slip control knob with tension adjustment.|
|ILLUMINATION:||Kohler LED with variable intensity control and field diaphragm in the lamp.|
|WEIGHT:||24.11 lb / 10.93 kg.|
|DIMENSIONS:||12.01” x 14.96” x 20.08” / 305 x 379 x 510 mm|
|POWER SUPPLY:||Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.|
- Blue, green and yellow filters.
- Dust cover.
- Immersion oil.
- Operation manual.
- Power cord.
