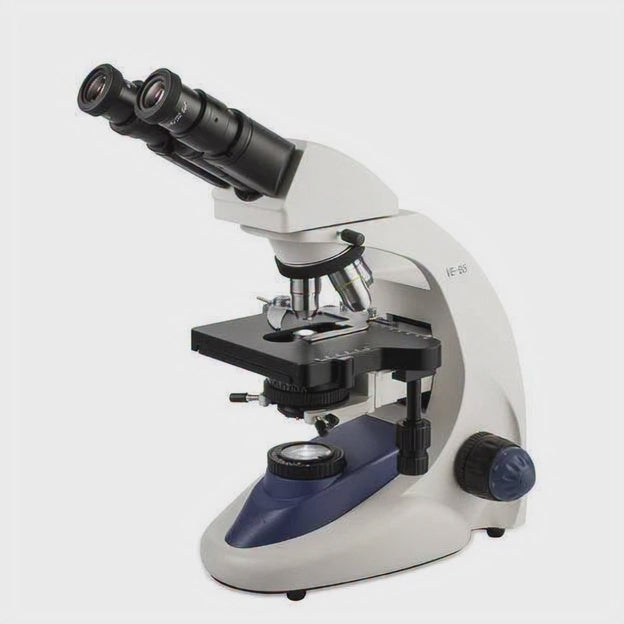

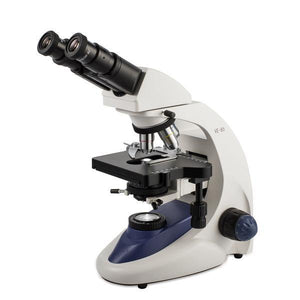

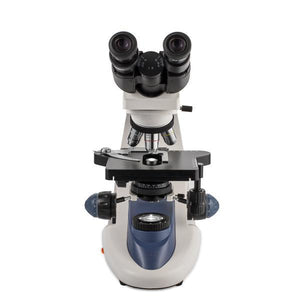

The VE-B5 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device.
The VE-B5 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
|EYEPIECES:||WF 10x/22mm with rubber eyecups diopter adjustment on one eyepiece.|
|HEAD:||Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95”.|
|NOSEPIECE:||Quadruple nosepiece with anti-slip ring and click-stops.|

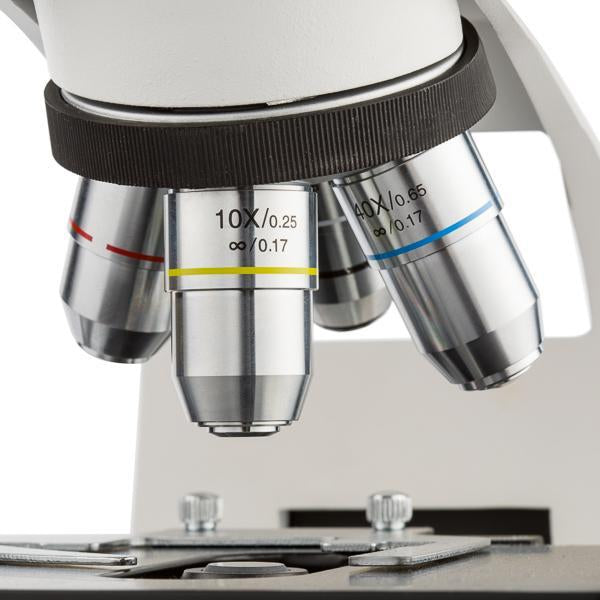

|OBJECTIVES:||4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification.|
|BODY:||Stative, robust and reinforced with epoxy paint finish.|
|STAGE:||Double plate with X-Y coaxial movement, 150 x 132 mm / 5.90” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop.|
|CONDENSER:||Abbe, A.N. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (no included).|
|DIAPHRAGM:||Iris with filter holder.|
|FOCUSING:||Coarse and fine anti-slip control knob with tension adjustment.|

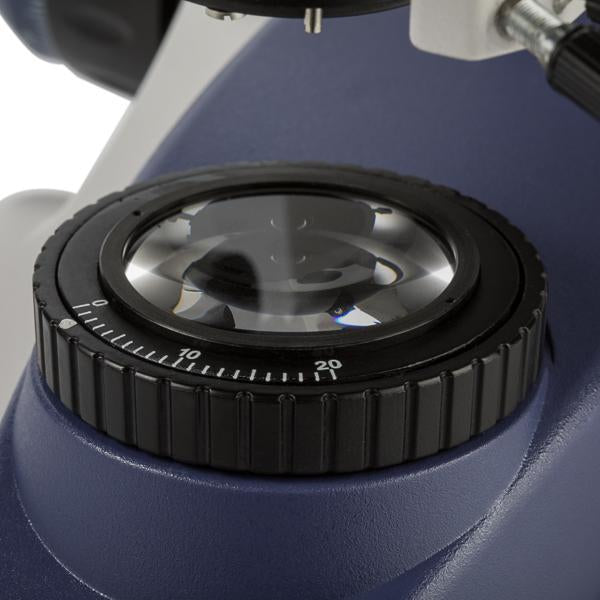

|ILLUMINATION:||Kohler LED with variable intensity control and field diaphragm in the lamp.|
|POWER SUPPLY:||Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.|
|DIMENSIONS:||10.43″ x 16.92″ x 11.61″|
- Blue, green and yellow filters.
- Dust cover.
- Immersion oil.
- Operation manual.
- Power cord.
