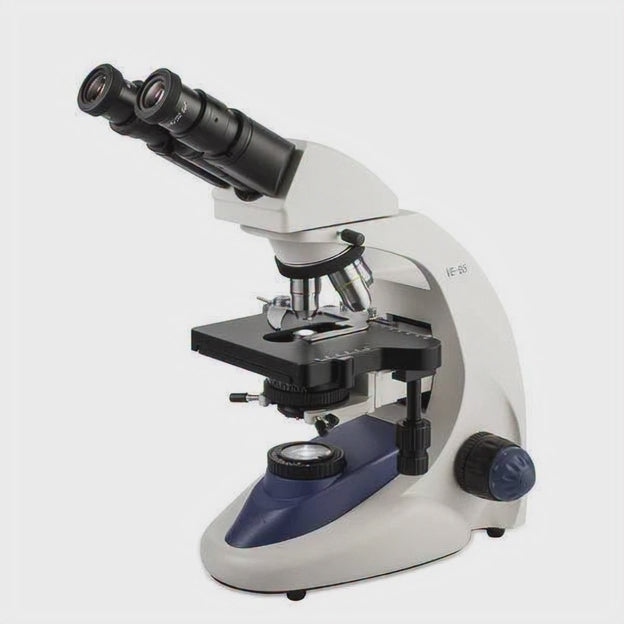

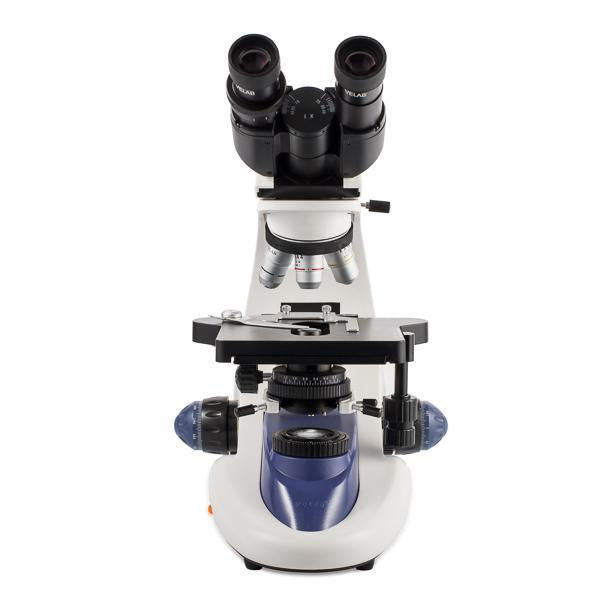

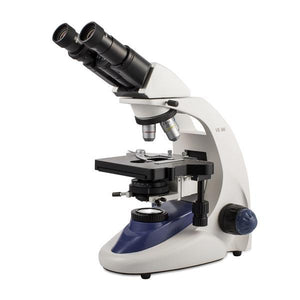

VE-B6 Binocular Siedentopf Microscope

sku: VE-B6

$607.50 USD $675.00 USD
  • VE-B6 Binocular Siedentopf Microscope

VELAB

VE-B6 Binocular Siedentopf Microscope

sku: VE-B6

$607.50 USD $675.00 USD

The VE-B6 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories

The Kohler LED lighting makes it a very complete and versatile device for the observation of cellular alterations in areas such as histopathology, epidemiology, medicine, biomedicine, biotechnology, etc.

It is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.

TECHNICAL DATA

Eyepieces

WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.

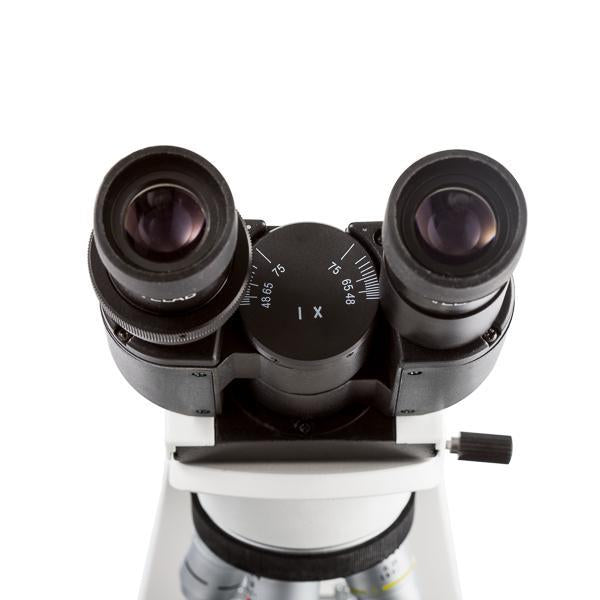

Head

Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 – 75 mm / 1.88” - 2.95”.

Nosepieces

Quadruple nosepiece with anti-slip grip and click-stops.

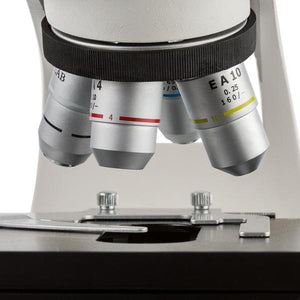

Objectives

4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics, metallic finish and color ring for easy identification.

Stand

Stative, robust and reinforced with epoxy paint finish.

Stage

Double plate with X-Y coaxial movement, 150 x 132 mm/5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.

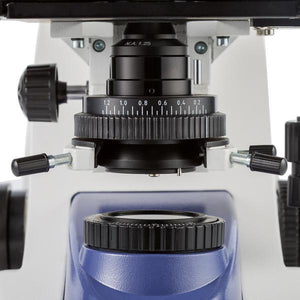

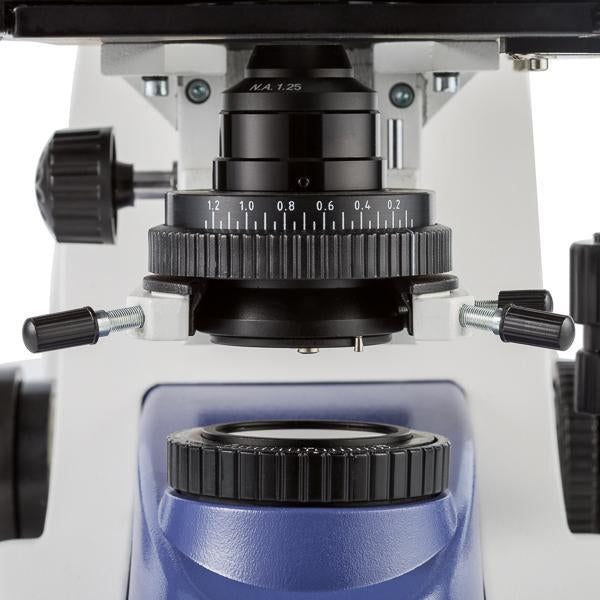

Condenser

Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).

Diaphragm

Iris type with filter holders.

Focusing

Coarse and fine anti-slip control knob with tension adjustment.

Illumination

Kohler LED with variable intensity control and field diaphragm in the lamp.

Power supply

Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 120V, 50/60 Hz AC adapter.

Accessories included

Power cord.
Immersion oil.
Dust cover.
Operation manual.

Yellow, blue and green filters.

Accessories not included

Phase contrast kit.
Polarization set.
