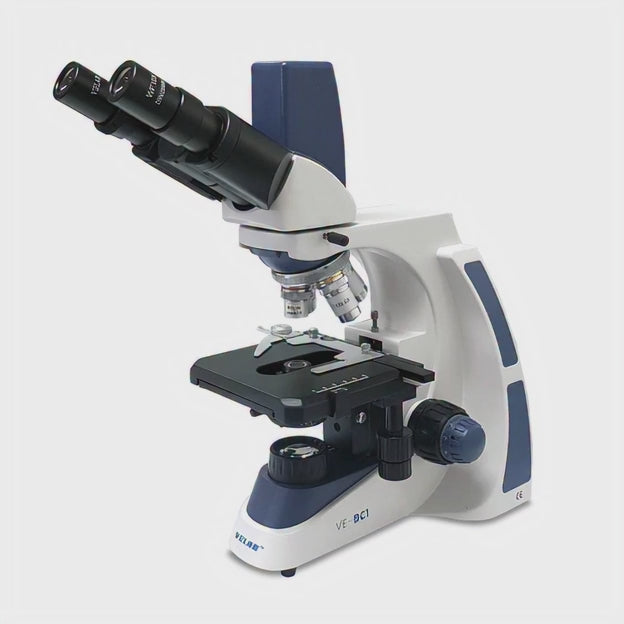

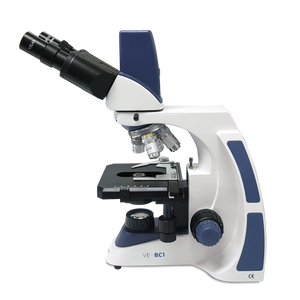

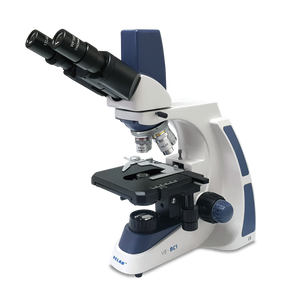

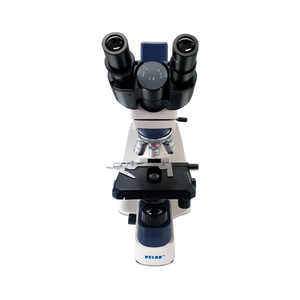

VE-BC1 Binocular Microscope with Integrated 3.0 MP Digital Camera
Equipped with a 3.0MP digital camera, the VE-BC1 is the ideal device for teaching secondary and higher education courses, as well as for analysis, group observation and evidence documentation during diagnosis, basic and intermediate research.
It includes easy operation software compatible with Windows operating systems. It is practical for the observation of images in real time and for storing obtained captures on your computer.
|
Eyepieces |
WF 10X/22 mm. |
|
Camera |
3.0 MP integraded |
| Nosepieces |
Quadruple |
|
Objectives |
4X, 10X, 40X (S), 100X (oil) (S) |
|
Optical System |
Achromatic. |
|
Stage |
Double layer with coaxial movement X-Y 135 x 135 mm / 5.3” x 5.3”. |
|
Condenser |
Abbe, N.A 1.25 |
|
Diaphragm |
Iris type with filter holder |
|
Focus |
Coarse and fine anti-slip control knob |
|
Ilumination |
LED |
|
Dimensions |
180 x 375 x 250 mm/ 7.0” x 14.7” x 9.8”. |
|
Power supply |
110/240, 50/60 Hz AC Adapter. |
|
Main Features |
Integrated digital camera. Siedentopf type Binocular Head. Head tilted 30 ° and rotatable 360°. Interpupillary distance of 48 ~ 75 mm. Software for capture image, video, and digital analysis. Stative, robust, reinforced and easy to transport. Lighting with intensity adjustment. Objectives with color rings. Stage with vernier, millimeter scale, caliper and stop with height adjustment. |
|
Applications |
Education: Upper grade levels |
|
Accessories Included |
USB cable Immersion oil Eyepieces WF 20x/15mm Dust cover Power cord Software Color filters green, yellow and blue |
|
Warranty |
10 Years |
