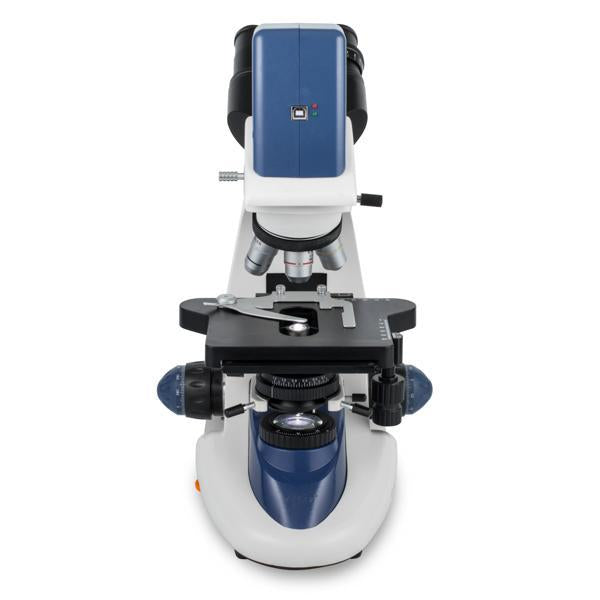

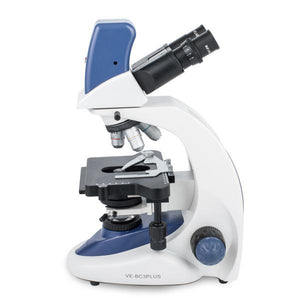

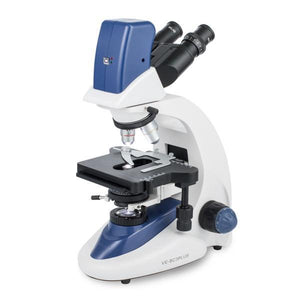

VE-BC3 PLUS Binocular Microscope with Integrated 3.0 MP Digital Camera (Intermediate)
The VE-BC3 PLUS digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 3.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
WF 10X/20 mm.
5.0 MP integraded
4X, 10X, 40X (S), 100X (oil) (S)
Double layer with coaxial movement X-Y 150 x 132 mm / 5.9” x 5.1”.
Abbe, N.A 1.25 with elevator
Iris type with filter holder
Coarse and fine anti-slip control knob
|Kholer LED |
|180 x 445 x 295 mm / 7.0” x 17.5” x 11.6”.|
Three 1.2V AA rechargeable batteries (included).
|Diopter adjustment in an eyepiece. |
Siedentopf type Binocular Head.
Head inclined at 30 ° and rotatable 360°.
Interpupillary distance of 48 ~ 75 mm.
Objectives with colored rings.
Stative, robust, reinforced and easy to transport.
Lighting with intensity adjustment and field diaphragm in lamp.
Stage with vernier, millimeter scale, caliper and stop with height adjustment.
Software for capture image, video, and digital analysis.
Education: Upper grade levels
| USB cable |
Blue, green and yellow filter
