VE-BC3 PLUS PLAN Binocular Microscope with Integrated 3.0 MP Digital Camera (Intermediate)

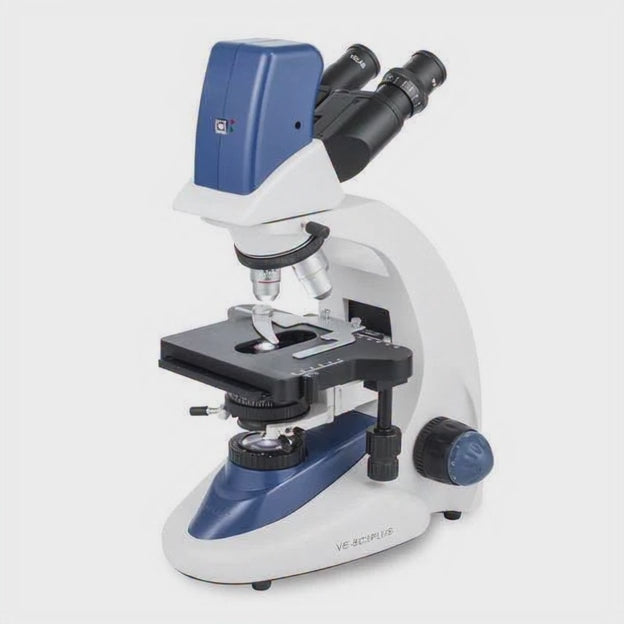

The VE-BC3 PLUS PLAN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 3.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
Especifications
|
Eyepieces |
WF 10X/22 mm. |
|
Camera |
5.0 MP integraded |
| Nosepieces |
Quadruple |
|

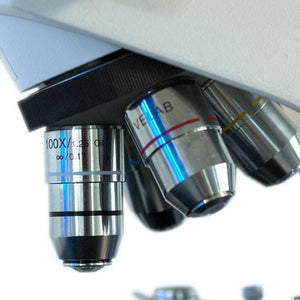

Objectives |
4X, 10X, 40X (S), 100X (oil) (S) |
|
Optical System |
Infinity-Corrected Plan Achromatic. |
|
Stage |
Double layer with coaxial movement X-Y 150 x 132 mm / 5.9” x 5.1”. |
|
Condenser |
Abbe, N.A 1.25 with elevator |
|
Diaphragm |
Iris type with filter holder |
|
Focus |
Coarse and fine anti-slip control knob |
|
Ilumination |
Kholer LED |
|
Dimensions |
180 x 445 x 295 mm / 7.0” x 17.5” x 11.6”. |
|
Power supply |
Three 1.2V AA rechargeable batteries (included). |
|
Main Features |
Diopter adjustment in an eyepiece. Stative, robust, reinforced and easy to transport. Siedentopf type Binocular Head. Lighting with intensity adjustment and field Head inclined at 30 ° and rotatable 360° diaphragm in lamp. Interpupillary distance of 48 ~ 75 mm. Stage with vernier, millimeter scale, caliper and stop with height adjustment. Objectives with colored rings. Integrated digital camera. Software for operating the camera and digital analysis. |
|
Applications |
Education: Upper grade levels |
|
Accessories Included |
USB cable Dust cover Immersion oil Power cord Blue, green and yellow filter Software Stage micrometer |
|
Warranty |
10 Years |
