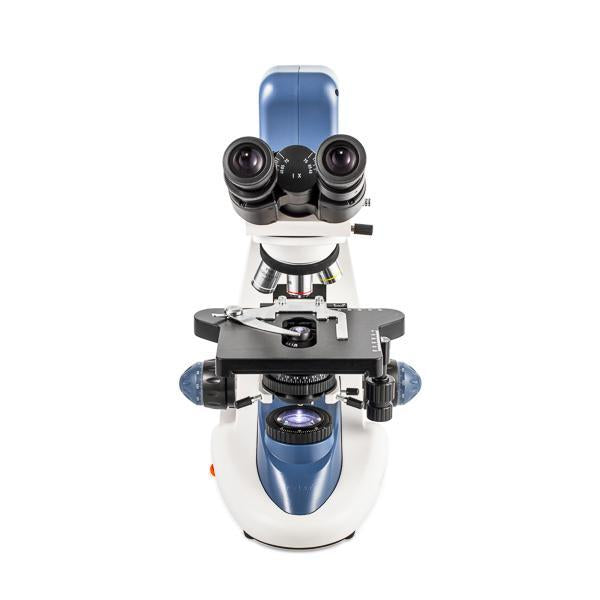

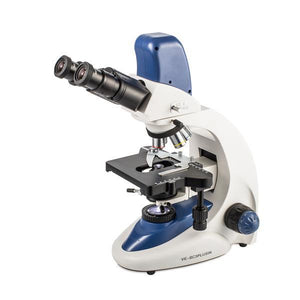

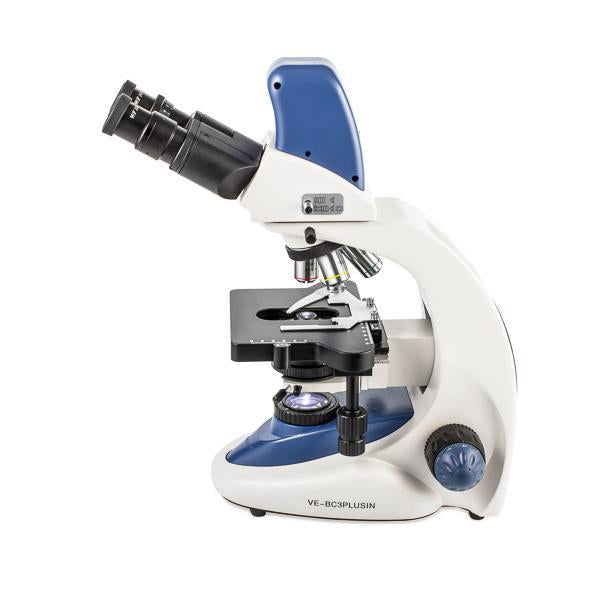

VE-BC3 PLUS PLAN (IN) Binocular Microscope with Integrated 5.0 MP Digital Camera
The VE-BC3 PLUS PLAN IN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its maintenance- free plate is free of frames and lateral projections and its objectives provide a wide field of observation. the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
Especifications
Eyepieces | WF 10X/22 mm. |

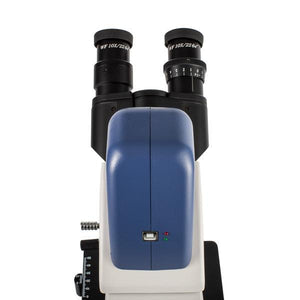

Camera | 5.0 MP integraded |
| Nosepieces | Quadruple |
Objectives | 4X, 10X, 40X (S), 100X (oil) (S) |
Optical System | Infinity-Corrected Plan Achromatic. |
Stage | Double layer with coaxial movement X-Y 150 x 132 mm / 5.9” x 5.1”. |
Condenser | Abbe, N.A 1.25 with elevator |
Diaphragm | Iris type |
Focus | Coarse and fine anti-slip control knob |
Ilumination | Kholer LED |
Dimensions | 180 x 445 x 295 mm / 7.0” x 17.5” x 11.6”. |
Power supply | Three 1.2V AA rechargeable batteries (included). |
Main Features | Diopter adjustment in an eyepiece. Stative, robust, reinforced and easy to transport. Siedentopf type Binocular Head. Lighting with intensity adjustment and field Head inclined at 30 ° and rotatable 360° diaphragm in lamp. Interpupillary distance of 48 ~ 75 mm. Stage with vernier, millimeter scale, caliper and stop with height adjustment. Objectives with colored rings. Integrated digital camera. |
Applications | Education: Upper grade levels |
Accessories Included | USB cable Dust cover Immersion oil Power cord Blue, green and yellow filter Software Stage micrometer |
Warranty | 10 Years |
