VELAB

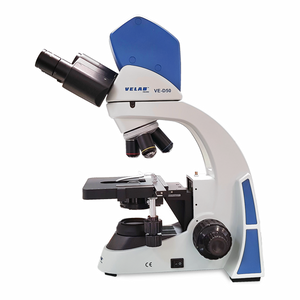

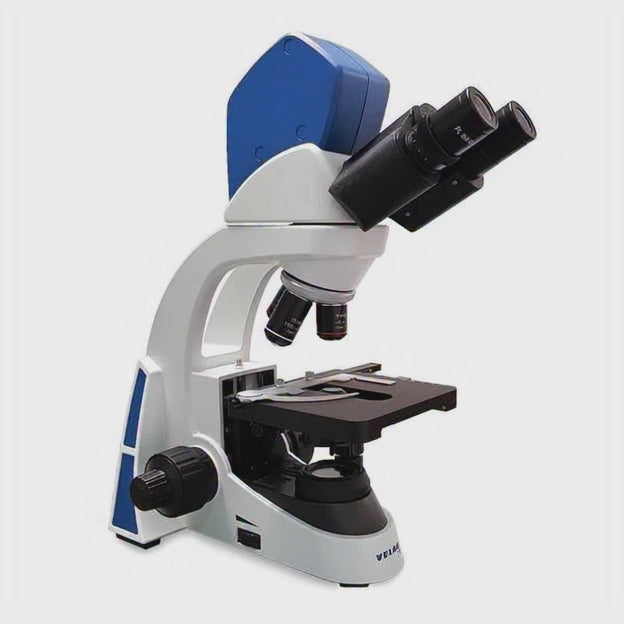

VE-D50 Digital Biological Binocular Microscope w/ 3.0 MP Digital Camera and Plan Achromatic Objectives

SKU: VE-D50

$1,208.70 USD $1,343.00 USD
  • VE-D50 Digital Biological Binocular Microscope w/ 3.0 MP Digital Camera and Plan Achromatic Objectives

VELAB

VE-D50 Digital Biological Binocular Microscope w/ 3.0 MP Digital Camera and Plan Achromatic Objectives

SKU: VE-D50

$1,208.70 USD $1,343.00 USD

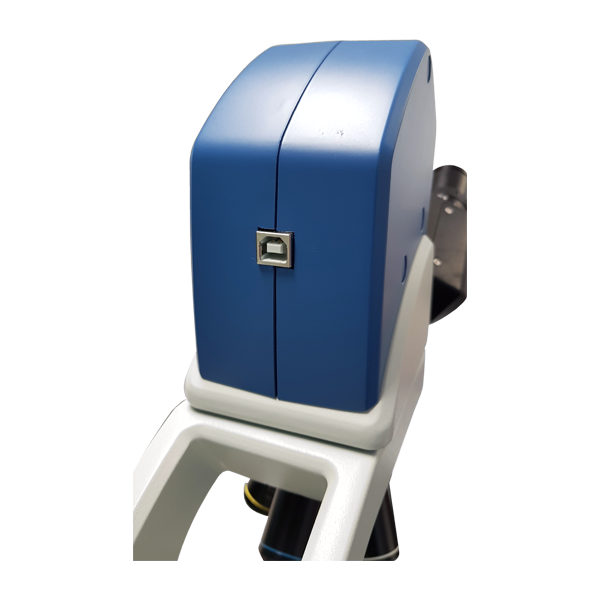

Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.

Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment

EYEPIECES PL 10X/18mm with ± 5 mm diopter adjustment in one eyepiece.
HEAD Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96”- 2.95”.
NOSEPIECE
Quadruple nosepiece with anti-slip ring and click-stops., mounted on high-tension ball bearings.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Two-Layer stage with X-Y coaxial movement, 5.51” x 5.19”, vernier, millimeter scale (3.46” x 2.36”), clamp and height adjustment with stop.
CONDENSER Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with fine 0.002 mm precision and tension adjustment.
ILUMINATION
3W LED with variable intensity control.
POWER SUPPLY
110-240V, 50/60 Hz, AC Adapter.



ACCESORIES INCLUDED

  • Power cord.
  • USB cable.
  • Software CD.
  • Dust cover.
  • Immersion oil.

Warranty
10 -years limited warranty
