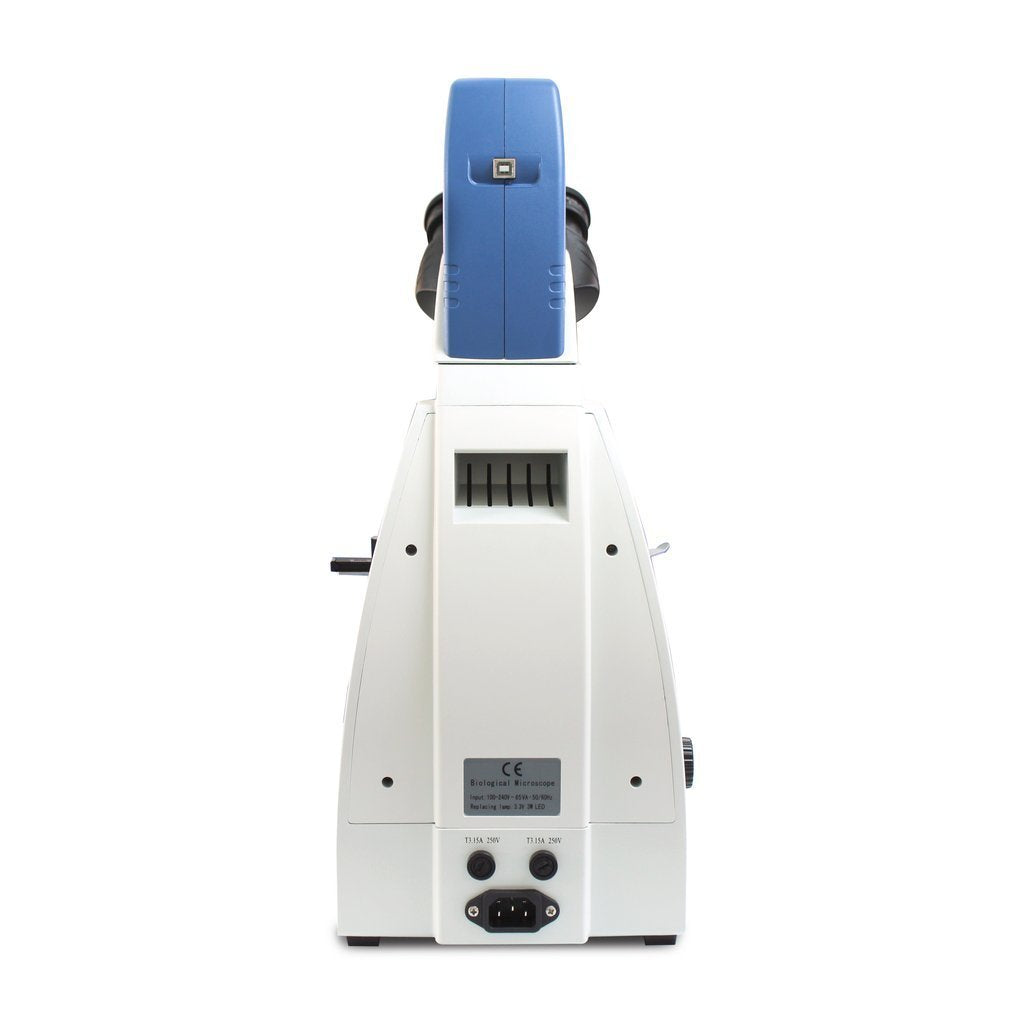

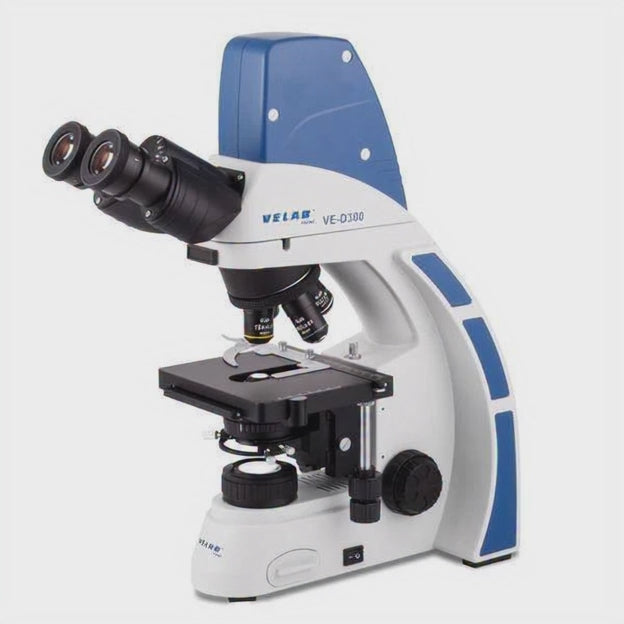

The VE-D300 digital microscope was designed for professional use. It has all the virtues of a professional biological microscope, in addition to being equipped with a 5.0MP digital camera. It includes an easy-to-use software compatible with Windows operating systems, practical for editing, storing and observing images in real time. It can perform measurements in a wide range of units. Compatible with Windows 10 and lower operating systems.
The VE-D300 is ideal for the identification and analysis of biological samples in areas such as biology, medicine, pathology and microbiology. Adaptable to the needs of the user, the VE-D300 offers optional configurations for several applications
TECHNICAL DATA
|
Eyepiece |
PL 10X/20mm with rubber eyecups and ± 5 mm diopter adjustment on both eyepieces. |
|
Head |
Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 - 75 mm /1.96”- 2.95” and integrated 5.0MP digital camera. |
| Nosepieces |
Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
|
Objectives |
4X/0.10, 10X/0.25, 40X/0.65 (retractable) and 100X/1.25 (retractable) oil immersion with infinity corrected plan achromatic optics and color ring for easy identification. |
|
Stand |
Stative, robust and reinforced with epoxy paint finish. |
|
Stage |
Double plate with X-Y coaxial movement, 150 x 140mm / 5.90” x 5.51”, vernier, millimeter scale (88 x 60 mm /3.46” x 2.36”), clamp and height adjustment with stop. |
|
Condenser |
Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included). |
|
Diaphragm |
Iris type with filter holders. |
|
Focusing |
Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
|
Illumination |
3W Kohler LED with variable intensity control and field diaphragm in the lamp. |
|
Power supply |
120V, 50/60 Hz AC adapter. |
|
Accessories included |
Power cord. |
|
Accessories not included |
Phase contrast kit. |
