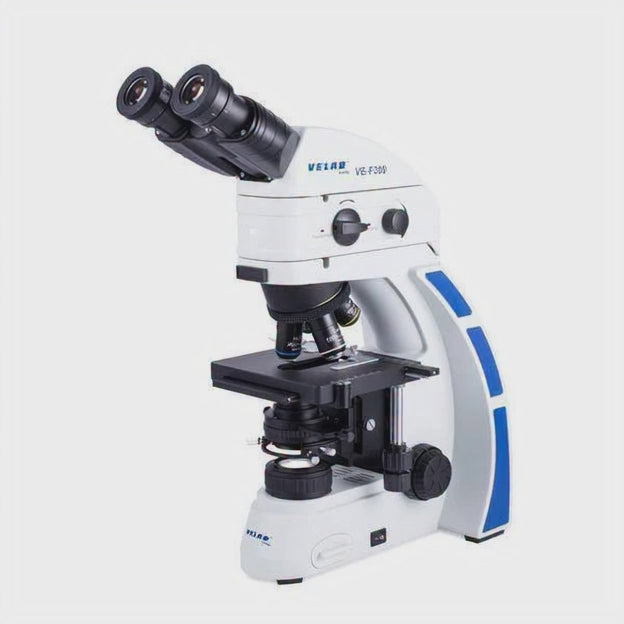

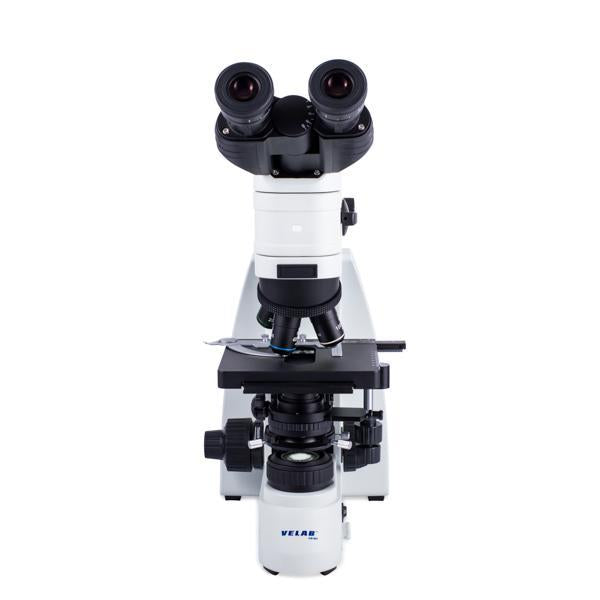

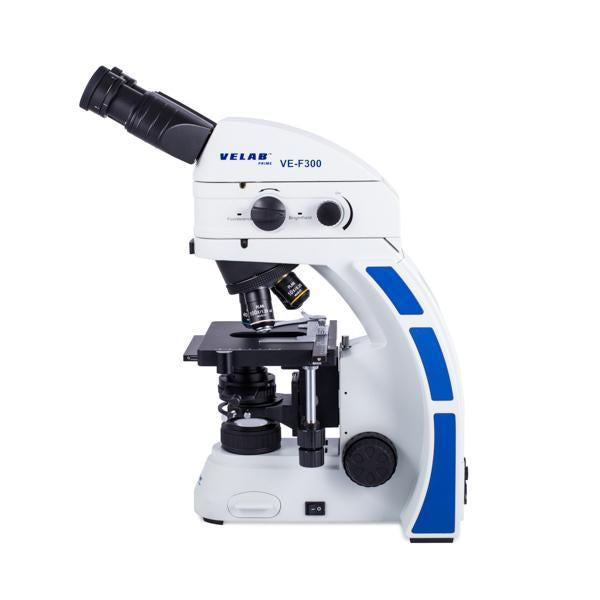

The VE-F300 LED fluorescence microscope was designed for professional use, thanks to its excellent quality optical components and highly efficient LED illumination. It includes Epi-LED fluorescence illumination for immediate use, extremely safe, and no need for a fluorescent light protective screen. Ideal in biochemistry, neurology, biology, research, as well as for the diagnosis of diseases.
Eyepieces | PL 10X/20 mm |
| Nosepieces | Quadruple. |

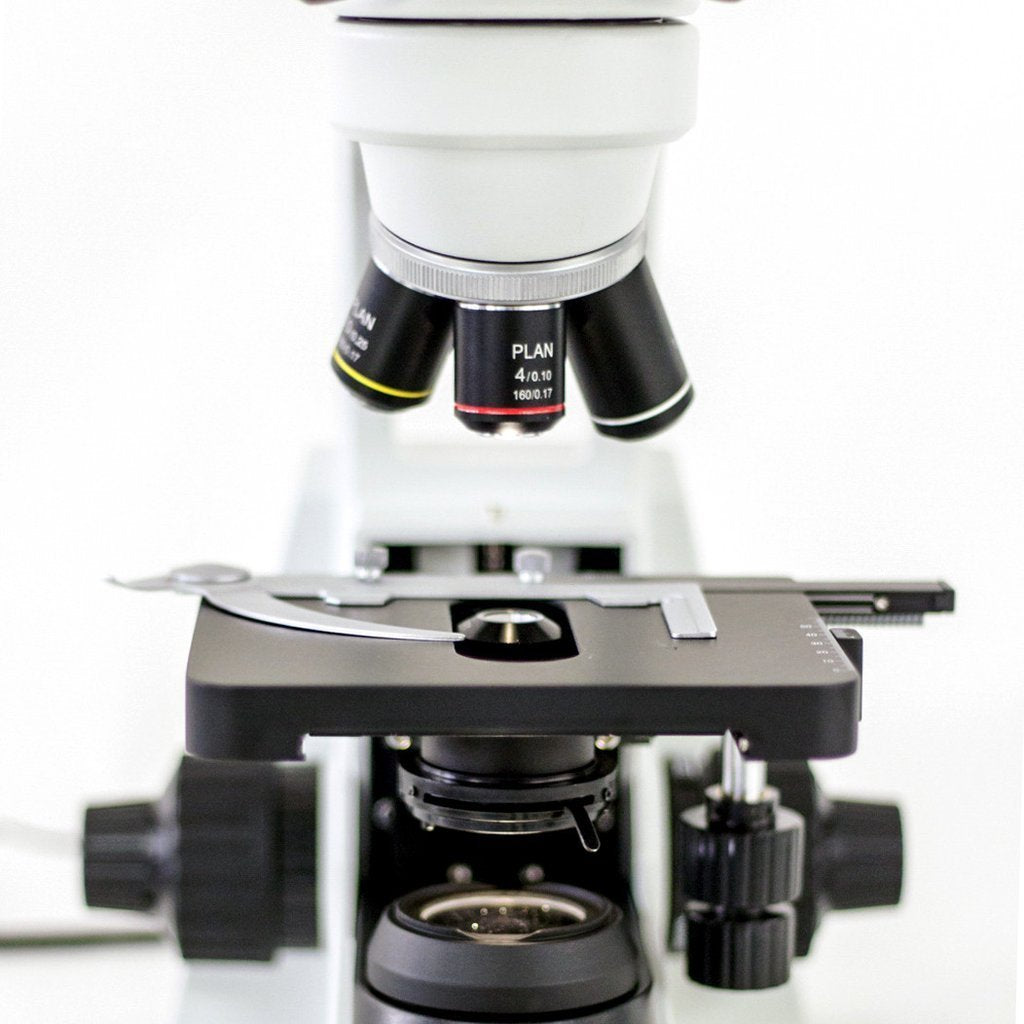

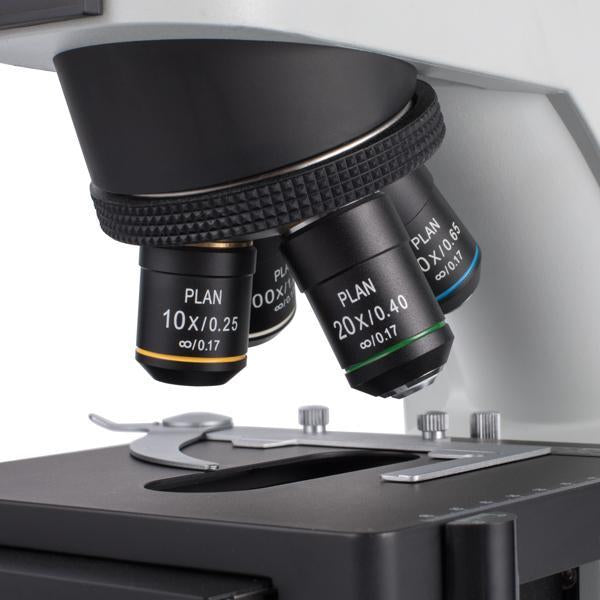

Objectives | 10X, 20X, 40X (S), 100X (Oil) (S). |
Optical System | Infinity-Corrected Plan Achromatic. |
Stage | Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9” x 5.5”. |

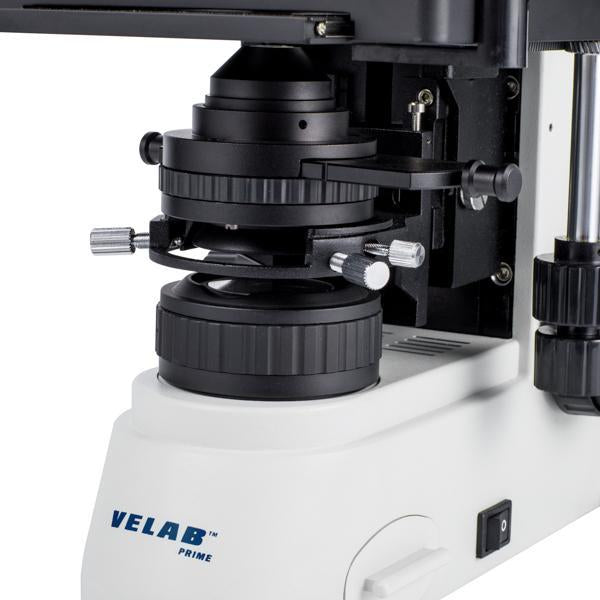

Condenser | Abbe, N.A 1.25 with elevator. |
Diaphragm | Iris type. |
Focus | Coarse and fine anti-slip control knob (precision 0.001 mm). |
Ilumination | Kohler LED 3W and Epi-Fluorescence LED to 470 nm, (optional: 365 nm, 455 nm, 560 nm) 6V/3W. |
Dimensions | 185 x 457 x 290 mm / 7.2” x 17.8” x 11.4”. |
Power supply | 110/240V, 50/60 Hz AC adapter. |

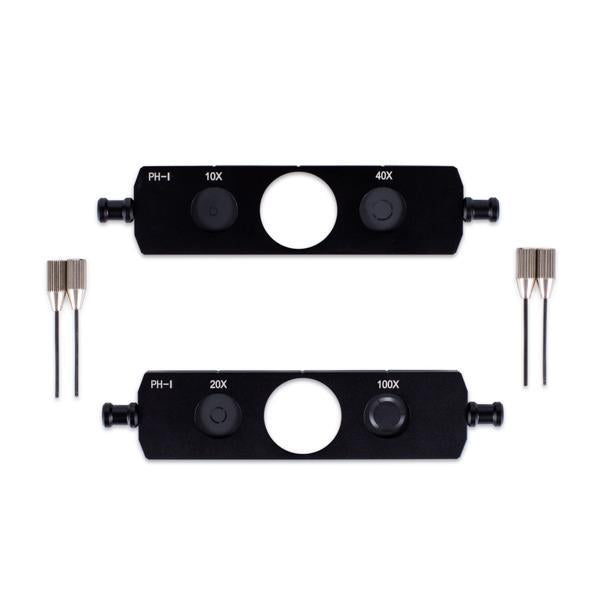

Main Features | Diopter adjustment on both eyepieces. Gemel type Binocular Head. Stage with vernier, millimeter scale and calipers. Objectives with colored rings. Optional accessories for phase contrast, darkfield and polarisation (not incluided). Optical correction PL, for the best viewing. Interpupillary distance of 50 - 75 mm. Head inclined at 30 ° with 360° rotable eyepiece tube. Stative, robust and reinforced. Easy to transport. Ilumination with intensity and diaphragm adjustment. Fluorescence ilumination by LED: 470 nm (preconfigured) UV: 365 nm, B2: 455 nm, G: 560 nm (opcional, non included). |
Applications | Education: Upper grade levels |
Accessories Included | Dust cover |
Warranty | 10 years |
