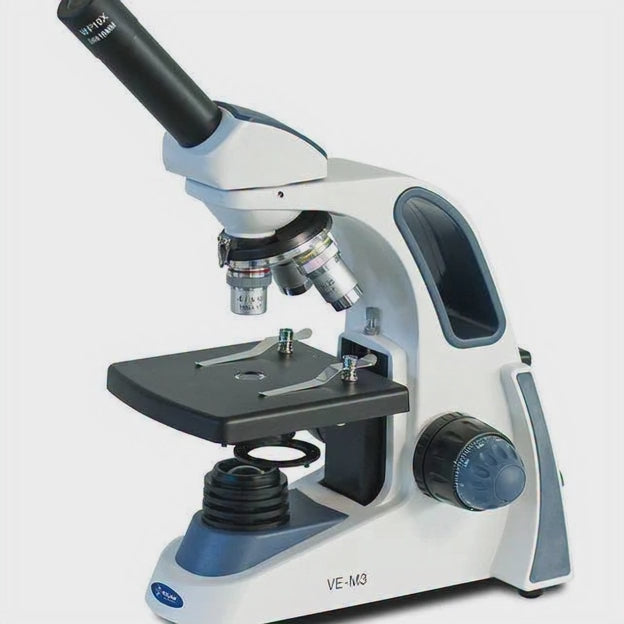

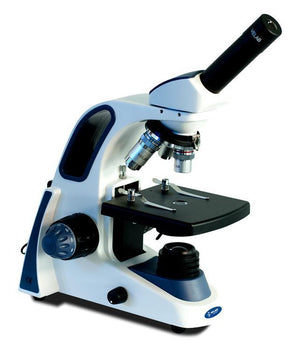

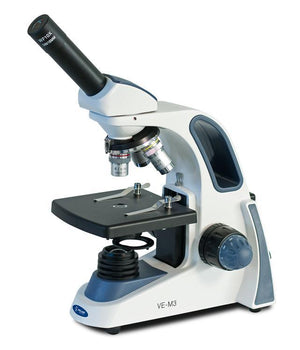

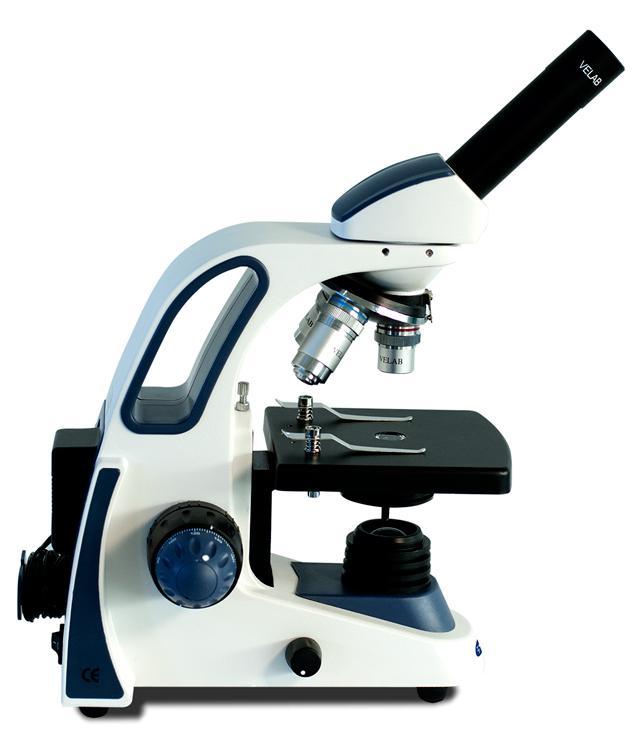

The VE-M3 microscope is specially designed for educational purposes. Ideal for application in sciences at the basic and intermediate levels. It is a fully portable device thanks to its rechargeable batteries, which allow 4 continuous hours of operation on a single charge. It includes a rear cable-winding reel for the power adapter and LED lighting which prevents the unit from heating up.
Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, sperm, etc.
TECHNICAL DATA
|
Head |
45° inclined monocular head with 360° rotation. |
|
Eyepiece |
WF 10X/18 mm with block screw. |
| Nosepieces |
Triple nosepiece with click-stops. |
|

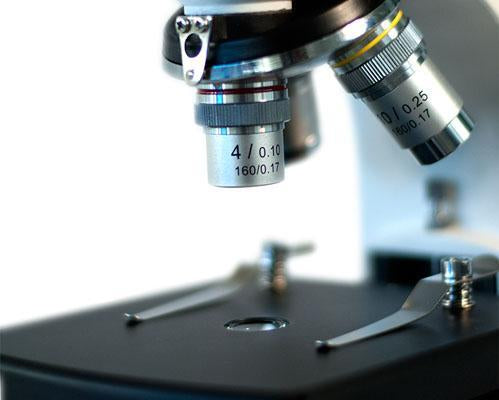

Objectives |
4X, 10X and 40X (retractable) with achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
|
Stand |
Stative, robust and reinforced with epoxy paint finish. |
|
Stage |
Flat 120 x 120 mm / 4.72” x 4.72” with two object clips and height adjustment with stop. |
|
Condenser |
N.A. 0.65 |
|
Diaphragm |
Iris type with filter holder. |
|
Focusing |
Coarse and fine anti-slip control knob with tension adjustment. |
|
Illumination |
LED with variable intensity control.
|
|
Power supply |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 120V, 50/60 Hz AC adapter. |
|
Accessories included |
AC/DC adapter Dust cover. Operation manual. Adapter cable reel device. |
