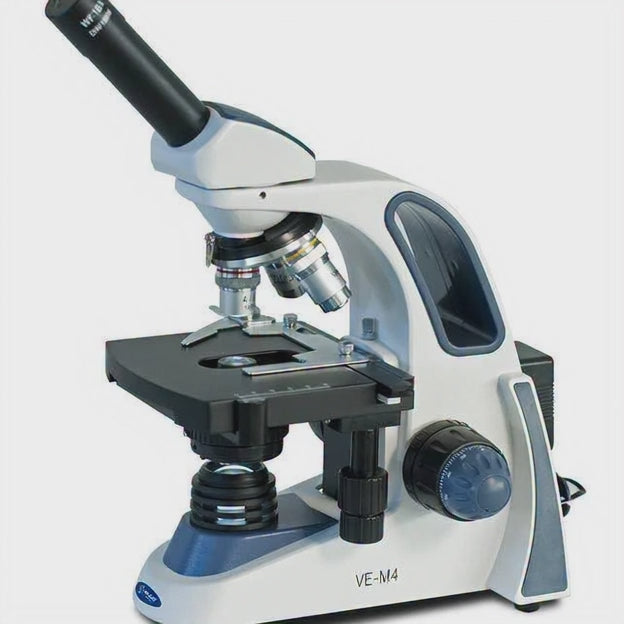

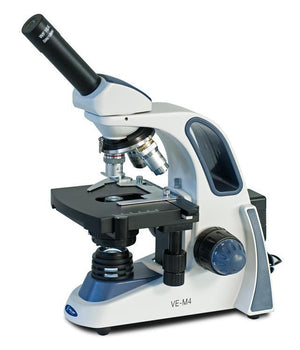

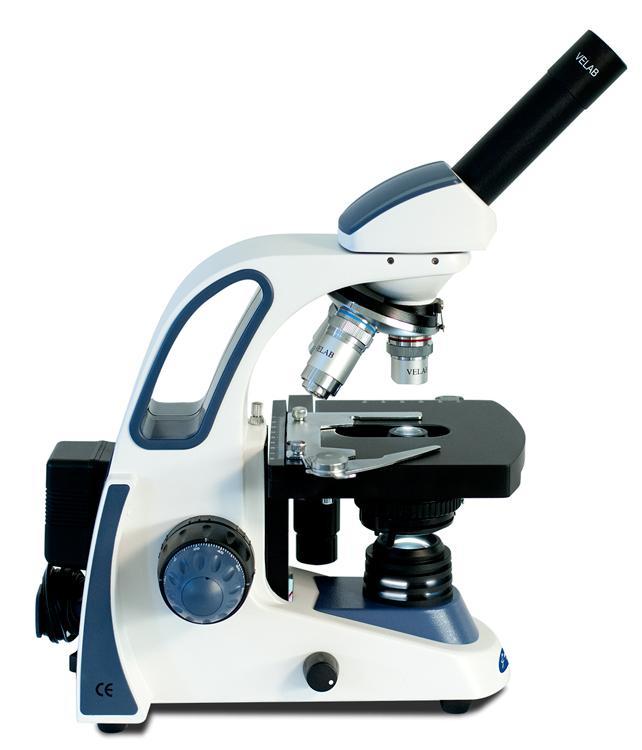

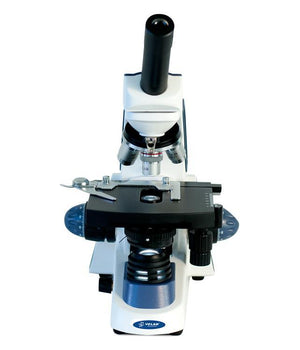

VE-M4 Biological Monocular Microscope w/ Triple Nose Piece (Intermediate)

sku: VE-M4

$224.10 USD $249.00 USD

The VE-M4 is the ideal microscope for education and laboratories settings. Its mechanical stage facilitates sample observations and the LED lighting prevents the device from heating up. The VE-M4 includes a rear cable-winding reel for the power adapter.

Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, sperm, etc.

TECHNICAL DATA

Eyepiece



WF 10X/18 mm with block screw.

Head

45° inclined monocular head with 360° rotation.

Nosepieces

Triple nosepiece with click-stops.

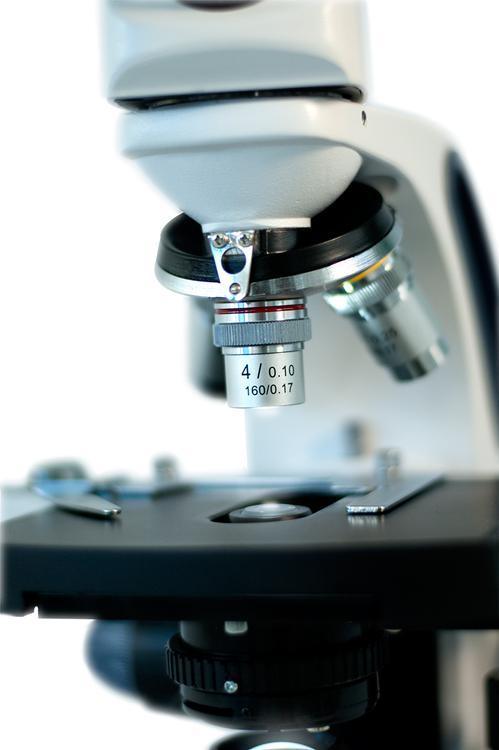

Objectives

4X, 10X, 40X (retractable) with achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.

Stand

Stative, robust and reinforced with epoxy paint finish.

Stage

Double plate with X-Y coaxial movement, 130 X 130 mm / 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop.

Condenser

Abbe, N.A. 1.25 with height adjustment screw.

Diaphragm

Iris type with filter holders.

Focusing

Coarse and fine anti-slip control knob with tension adjustment.

Illumination

LED with variable intensity control.

Power supply

Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 120V, 50/60 Hz AC adapter.

Accessories included

AC/DC adapter.
Dust cover.
Operation manual.
Adapter cable reel device.
