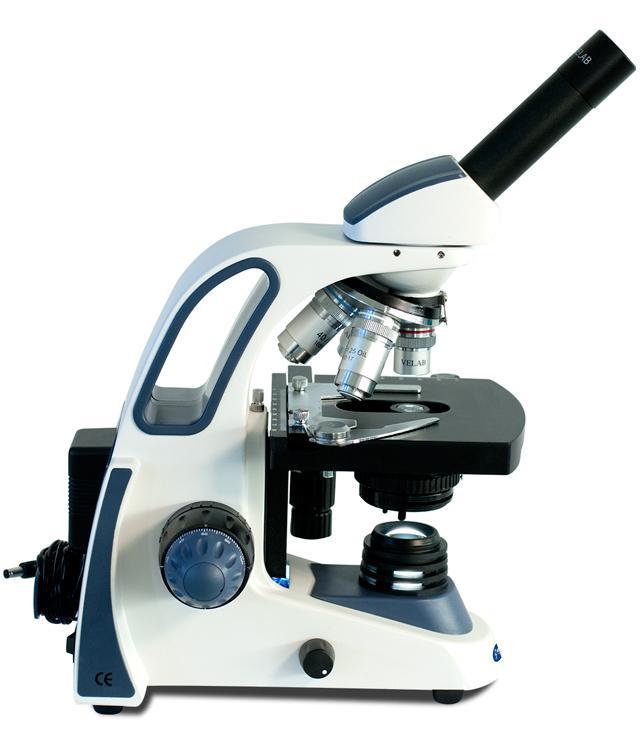

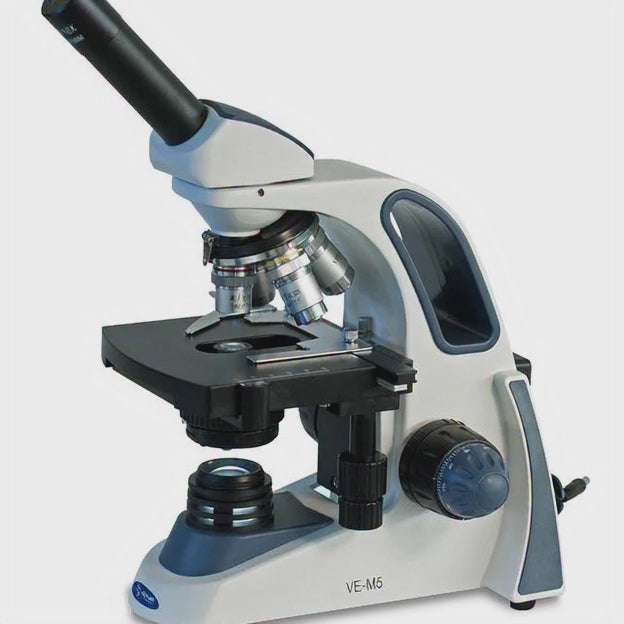

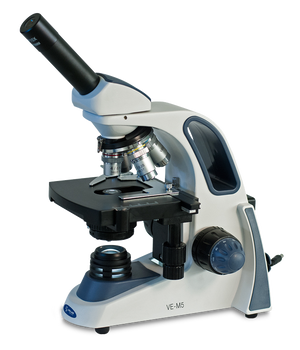

VE-M5 Biological Monocular Microscope w/ Quadruple Nose Piece (Intermediate)
The VE-M5 microscope can fulfill all kinds of basic and advanced procedures. Its area of application is not limited to education, it can be applied in clinical laboratories for observation of blood samples, parasite identification and urinary sediment sample observation, due to its immersion objective.

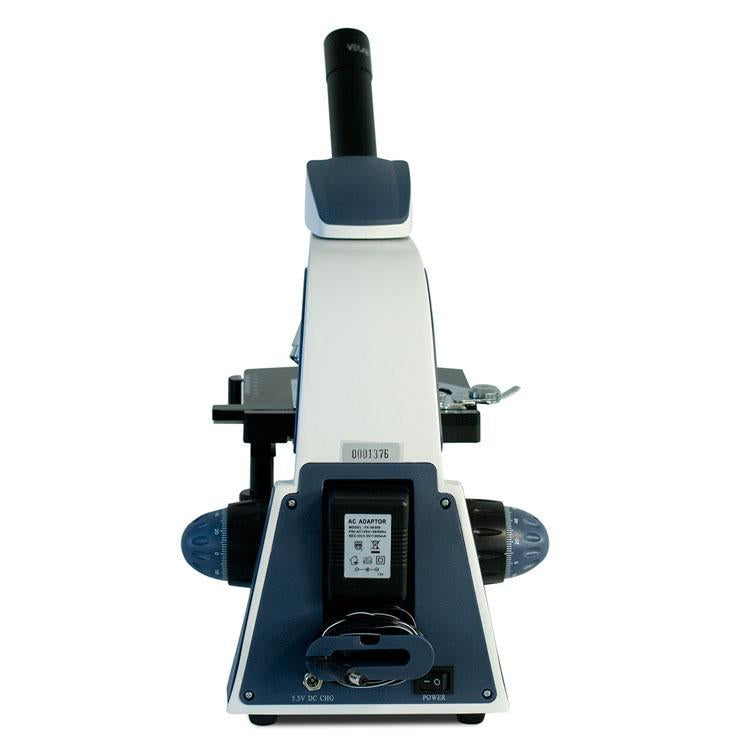

Includes a rear cable-winding reel for the power adapter. Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, sperm, etc.
Eyepieces | WF 10X/18 mm with block screw and pointer. |
| Nosepieces | Quadruple |
Objectives | 4X, 10X, 40X, (S) y 100X (oil). |
Optical System | Achromatic |
Stage | Double layer with coaxial movement X-Y 130 x 130 mm. |
Condenser | Abbe, N.A 1.25 with elevator. |
Diaphragm | Iris type with filter holder. |
Focus | Coarse and fine anti-slip control knob. |
Ilumination | LED |
Dimensions | 147 x 350 x 224 mm/ 5.7” x 13.72 x 8.8”. |
Power supply | Three 1.2V AA rechargeable batteries (included). |
Main Features | Stationary, robust and reinforced body. LED lighting with intensity adjustment. Compact, lightweight and easy to transport. Colored objevtive rings for easy identification. Monocular head inclined at 45 ° and rotatable 360 °. Non-slip lenses with metallic finish. Finished in epoxy paint. Stage with clamps and stop with height adjustment. |
Applications | Education |
Accessories Included | AC/CD Adapter |
Warranty | 10 years |
