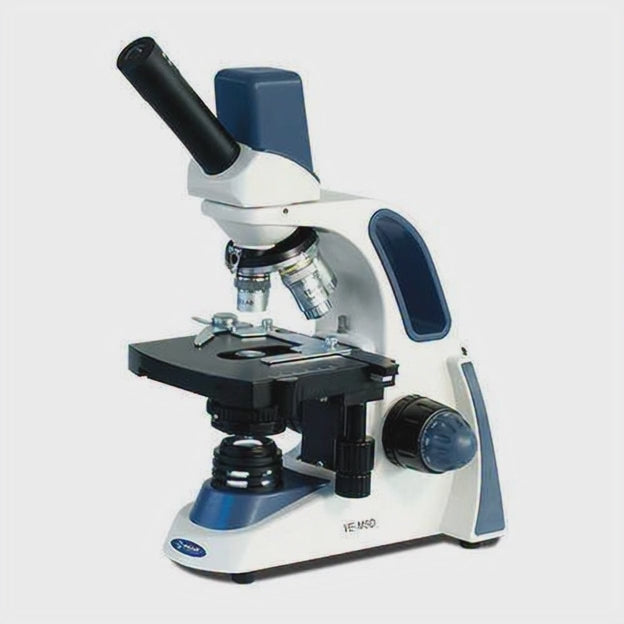

VE-M5D Biological Monocular Microscope w/ 3.0 MP Integrated Digital Camera
The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.
Eyepiece | WF 10X/18 mm with block screw and pointer. |
Camera | 1.3 MP. |
Nosepiece | Quadruple. |
Objectives | 4X, 10X, 40X (S), 100X (oil) (S). |
Optical System | Achromatic. |
Stage | Double layer with coaxial movement X-Y 130 x 130 mm / 5.1” x 5.1”. |
Condenser | Abbe, N.A 1.25 |
Diaphragm | Iris type with filter holder. |
Focus | Coarse and fine anti-slip control knob. |
Ilumination | LED |
Dimensions | 147 x 350 x 224 mm / 5.7” x 13.7” x 8.8”. |
Power supply | Three 1.2V AA rechargeable batteries (included). |
Main Features | Monocular head Head tilted 45 ° and rotatable 360 ° Stage with vernier, millimeter scale, clamp and stop with height adjustment. Lighting with intensity adjustment. Objectives with colored rings. Software for viewing, capture of photo and video. |
Applications | Education: Basic grade levels |
Accessories Included | Software Immersion Oil Dust cover Color filters green, yellow and blue USB cable AC/CD Adapter |
Warranty | 10 Years |
