VE-M5DTH DUAL VIEW COMPOUND MICROSCOPE

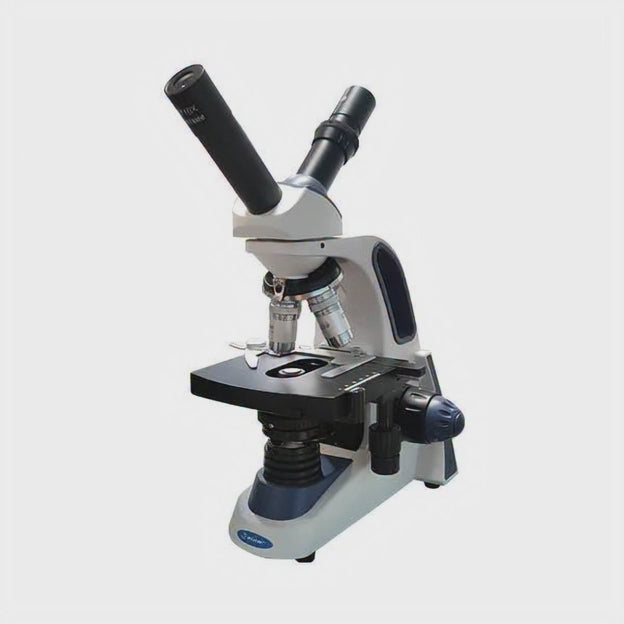

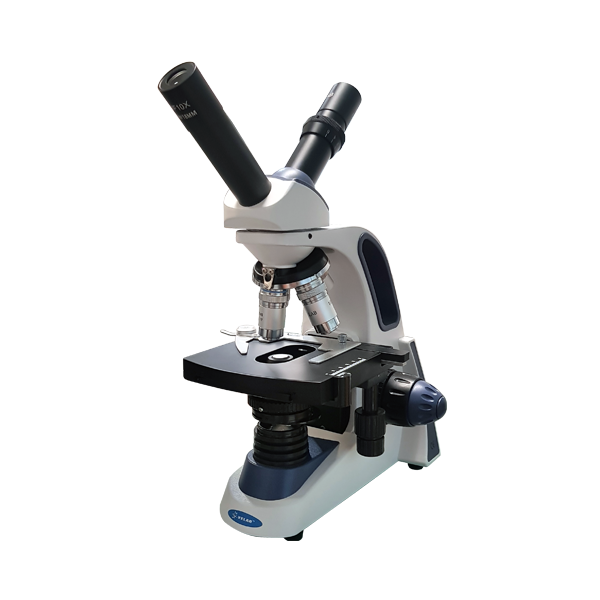

The VE-M5DTH dual view compound microscope is ideal for 2 simultaneous observations. Its area of application is not limited to mid and upper level education environments, the VE-M5DTH can also be applied to meet the basic needs in clinical laboratories. It features LED illumination and a quadruple nosepiece (with immersion objective).
|
Eyepiece |
WF 10X/18 mm with block screw and pointer. |
|
Nosepiece |
Quadruple |
|

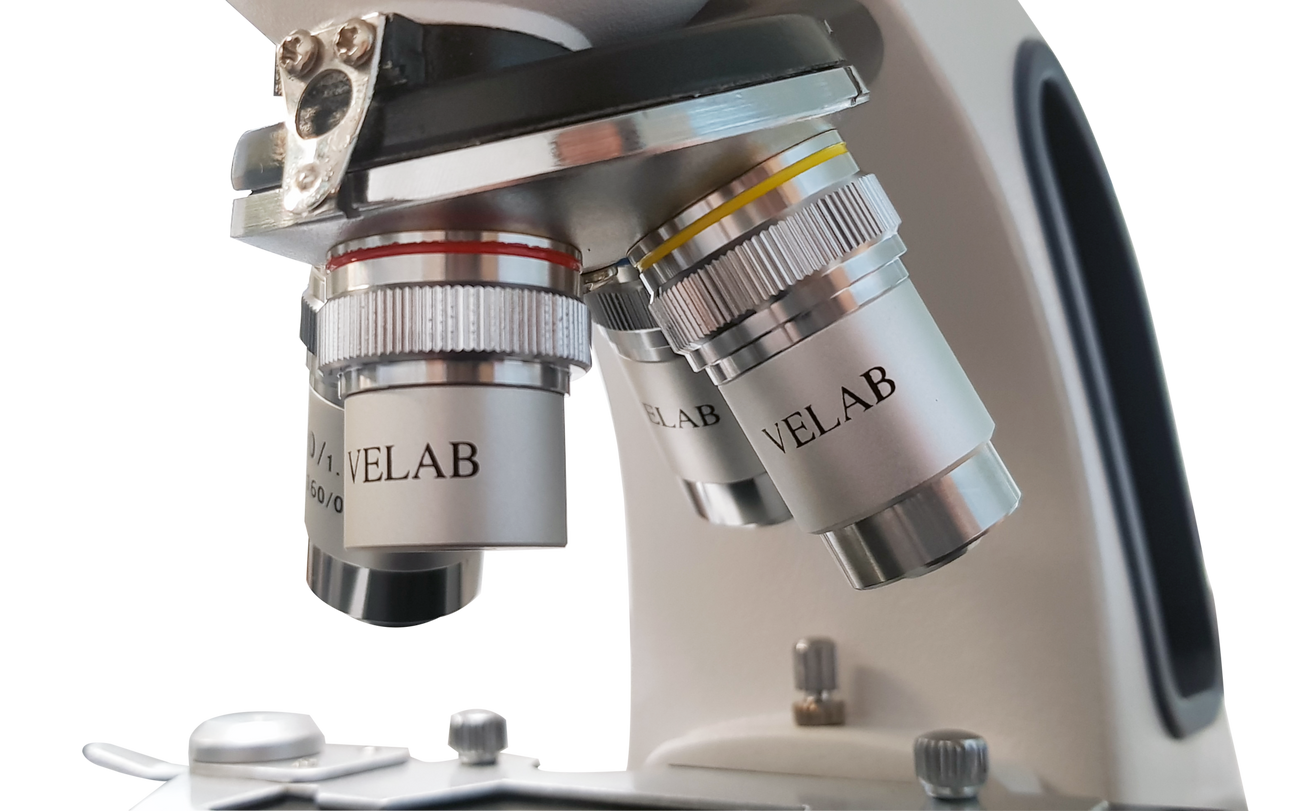

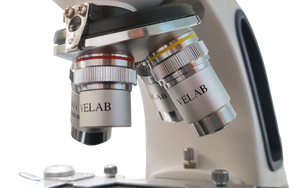

Objectives |
4X, 10X, 40X, 100X (Oil) (S) |
|
Optical System |
Achromatic |
|
Stage |
Double layer with coaxial movement X-Y, 130 x 130 mm / 5.1” x 5.1”. |
|
Diaphragm |
Iris type with filter holder. |
|
Focus |
Coarse and fine anti-slip control knob |
|

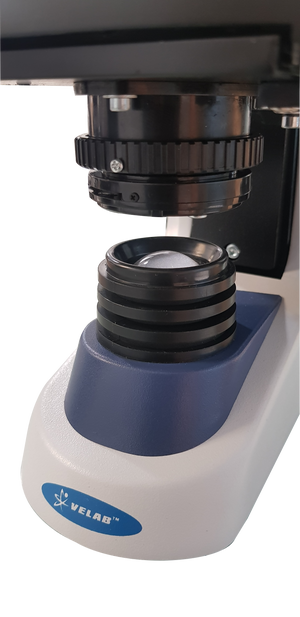

Ilumination |
LED |
|
Dimensions |
145 x 350 x 230 mm/ 5.7” x 13.7 x 9.0”. |
|
Power supply |
Three 1.2V AA rechargeable batteries (included). |
|
Main Features |
10X Wide Field Monocular Dual Head. LED lighting with intensity adjustment. Compact, lightweight and easy to transport. Stage with clamps, stop with height adjustment, vernier and millimeter scale. Colored objective rings for easy identification. Non-slip lenses with metallic finish. Finished in epoxy paint. Focus with tension adjustment. Head inclined at 45° and rotatable 360°. |
|
Applications |
Education |
|
Accessories Included |
AC/CD Adapter Immersion oil Dust cover Color filters green, yellow and blue |
|
Warranty |
10 Years |
