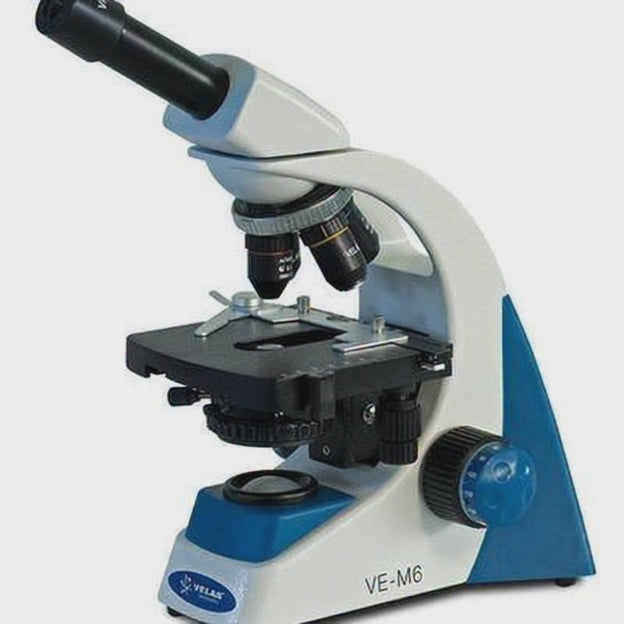

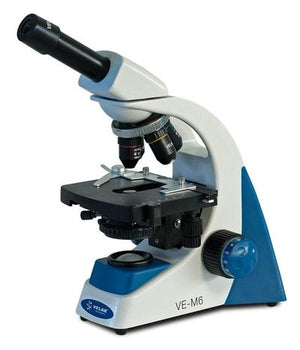

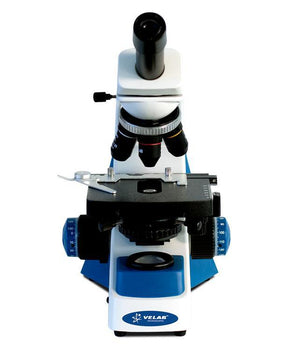

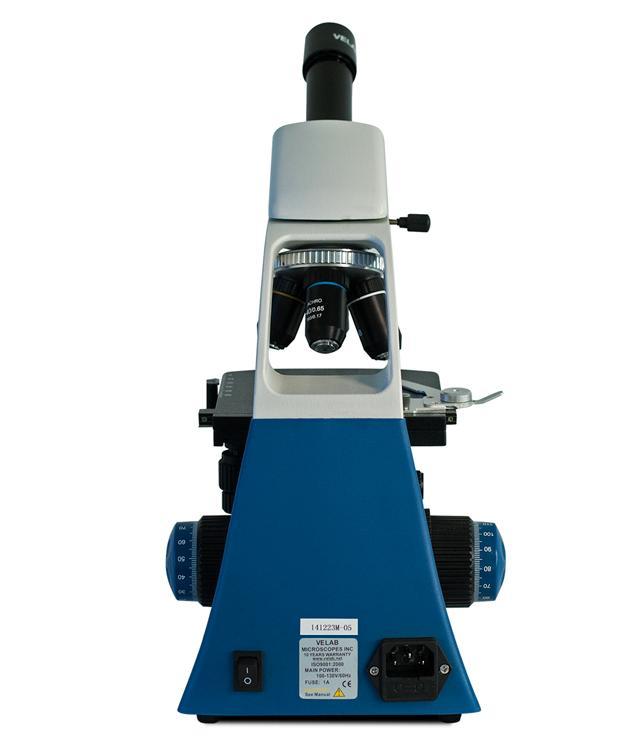

Professional wide-plate microscope, ideal for higher education, research, as well as routine work in clinical laboratories.
Suitable for smear microscopy, spermatobioscopy, cellular diversity in hematology, cell count in Neubauer chambers, observation of the disposition and cellular organization in different tissues, observation of urinary sediment and stool ova and parasite examinations.
Eyepieces | WF 10X/18 mm. |
| Nosepieces | Quadruple. |
Objectives | 4X, 10X, 40X (S), 100X (oil) |
Optical System | Achromatic |

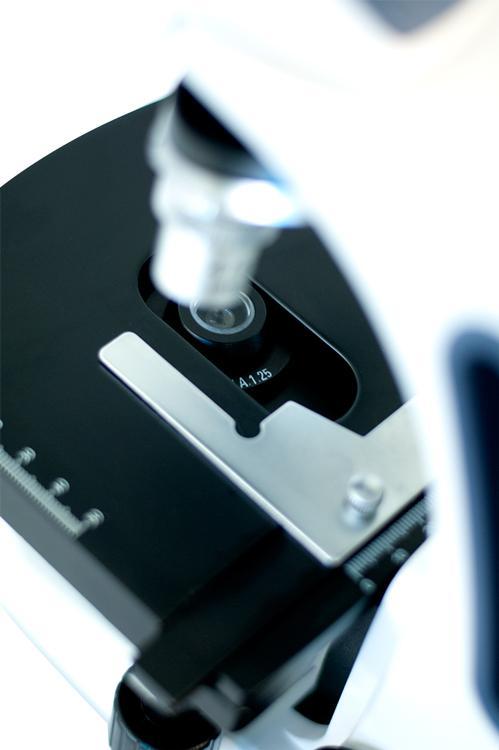

Stage | Double layer with coaxial movement X-Y 125 x 125 mm / 4.9” x 4.9”. |
Condenser | Abbe, N.A 1.25 with elevator. |
Diaphragm | Iris type with filter holder. |
Focus | Coarse and fine anti-slip control knob. |
Ilumination | LED |
Dimensions | 160 x 340 x 215 mm/ 6.29” x 13.38” x 8.46”. |
Power supply | 110/240, 50/60 Hz AC Adapter. |
Main Features | Stationary, robust and reinforced body. Monocular head inclined at 30° and rotatable 360°. LED lighting with intensity adjustment. Non-slip lenses with metallic finish. Compact, lightweight and easy to transport. Finished in epoxy paint. Colored objevtive rings for easy identification. Stage with clamps and stop with height adjustment vernier objective and millimeter scale. |
Applications | Education |
Accessories Included | AC/CD Adapter |
Warranty | 10 years |
