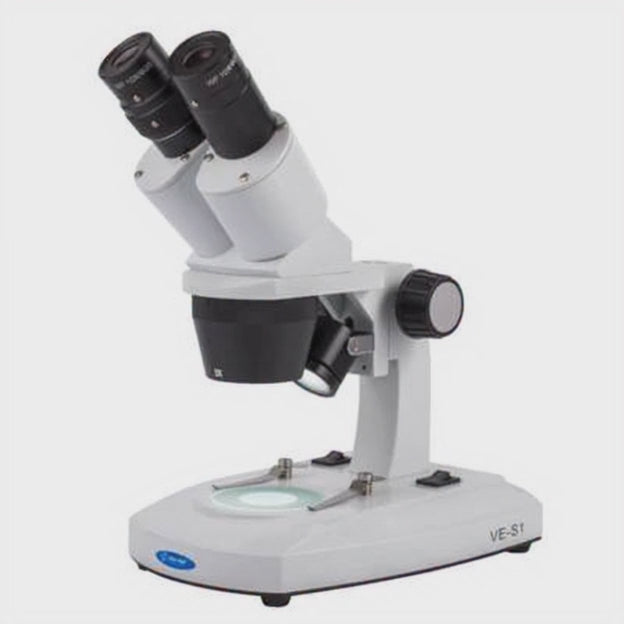

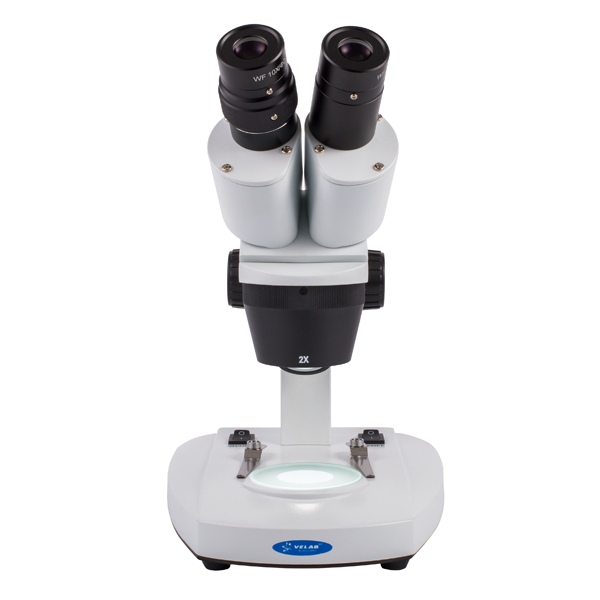

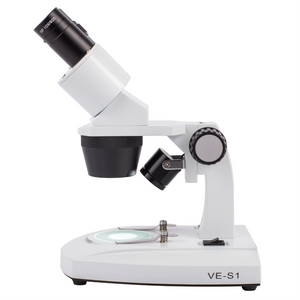

Ideal for primary education, the VE-S1 is also capable of covering basic procedures in secondary and higher education.
Its Greenough design allows three-dimensional observation of insects. The VE S1 is ideal in the dissection and classification of organisms, numismatics, as well as electronic industry and jewelry design.
TECHNICAL DATA
|
Eyepieces |
WF 10X/20mm with block screw, rubber eyecups and diopter adjustment on one eyepiece. |
|
Head |
Binocular 45° inclined, with interpupillary distance adjustment between 55 – 75 mm / 2.16” - 2.95”. |
|
Objectives |
Selectable 2X/4X (20 and 40 total increases), with objective cover. |
|
Stand |
Stative, robust and reinforced with epoxy paint finish. |
|
Stage |
Interchangeable between opaque glass and double side white / black, with a pair of stage clips. |
|
Focusing |
Coarse anti-slip control knob. |
|

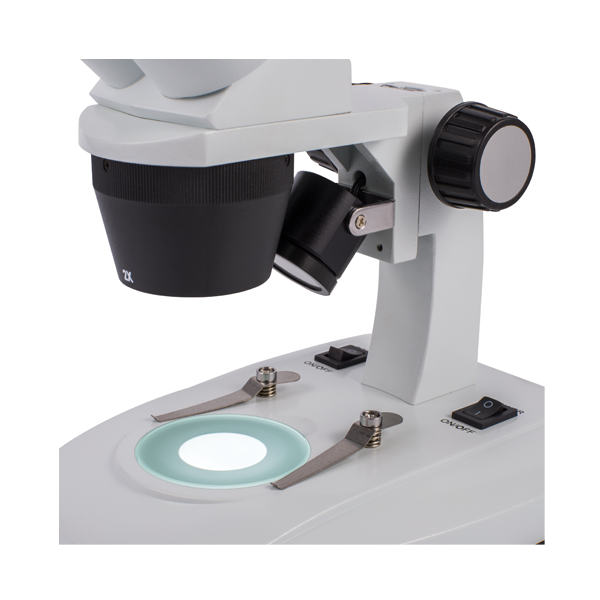

Illumination |
Transmitted and incident LED light with independent switches. |
|
Power supply |
120V, 50/60 Hz AC adapter. |
|
Accessories included |
Power cord.
Dust cover.
Operation manual.
Adjustment tool. |
