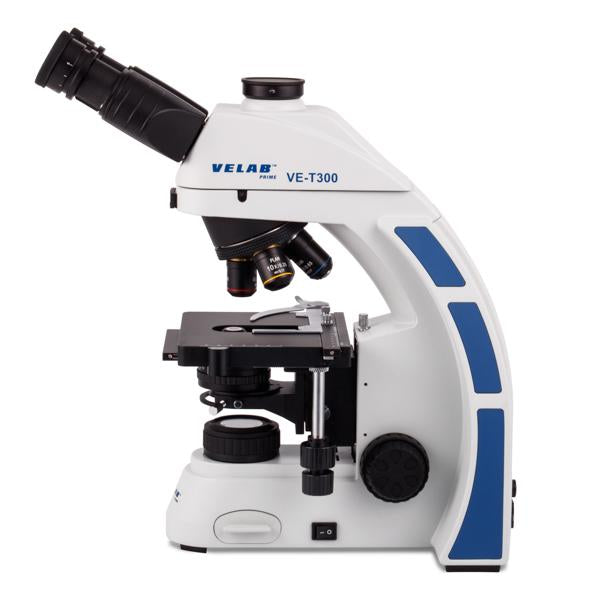

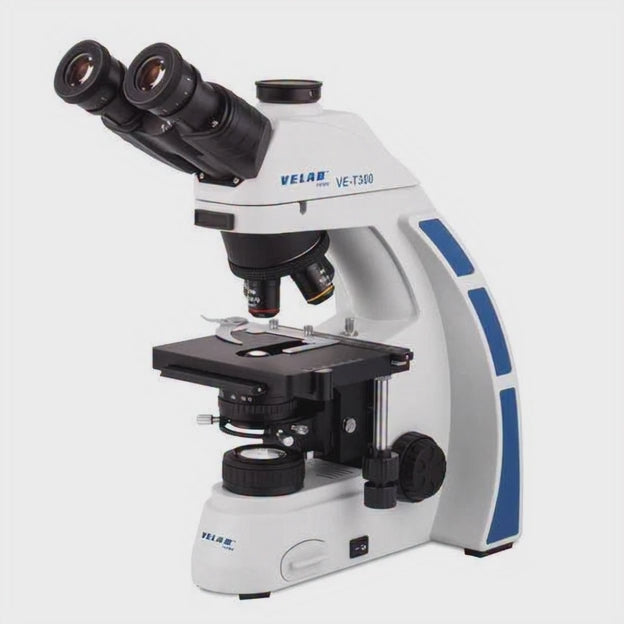

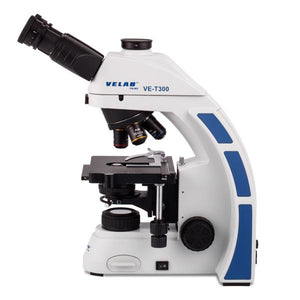

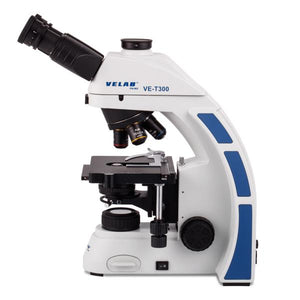

The VE-T300 microscope was designed for professional and is ideal for research, higher education and routine work in clinical laboratories, thanks to its excellent quality optical components and highly efficient LED illumination.
Adaptable to the needs of the user, the VE-T300 offers optional configurations for several applications. Its trinocular head allows the adaptation of digital devices (not included) for image and video documentation.
TECHNICAL DATA
|
Eyepiece |
PL 10X/20 mm with rubber eyecups and ± 5 mm diopter adjustment on both eyepieces. |
|

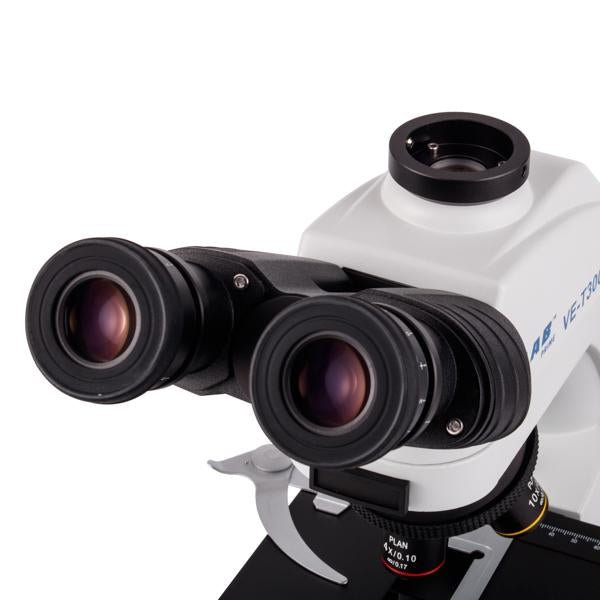

Head |
Trinocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 - 75 mm/1.96”-2.95”. |
| Nosepieces |
Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
|

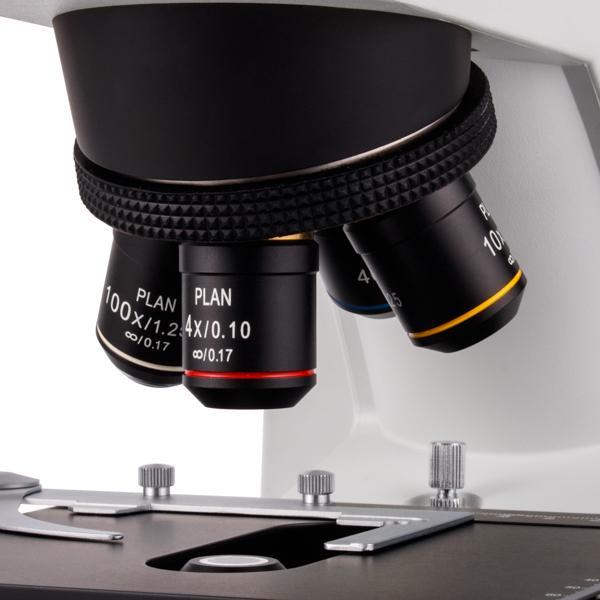

Objectives |
4X/0.10, 10X/0.25, 40X/0.65 (retractable) and 100X/1.25 (retractable) oil immersion with infinity corrected plan achromatic optics and color ring for easy identification. |
|
Stand |
Stative, robust and reinforced with epoxy paint finish. |
|
Stage |
Double plate with X-Y coaxial movement, 150 x 140mm / 5.90” x 5.51”, vernier, millimeter scale (88 x 60 mm/3.46” x 2.36”), clamp and height adjustment with stop. |
|

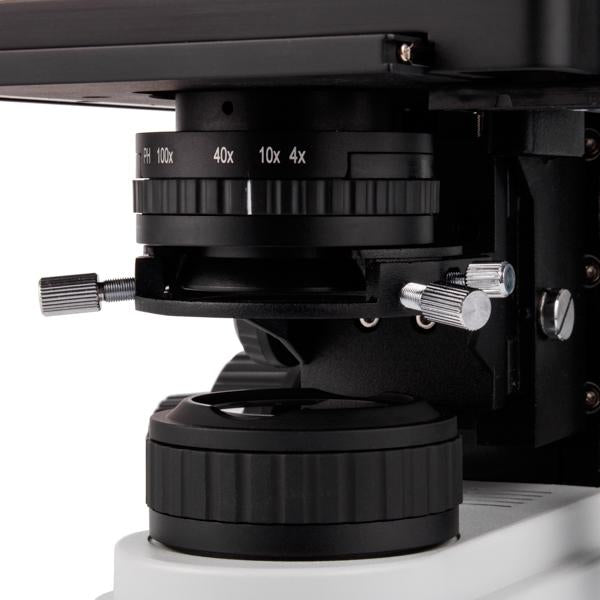

Condenser |
Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for optional configurations (not included). |
|
Diaphragm |
Iris type with filter holders. |
|
Focusing |
Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment.. |
|
Illumination |
3W Kohler LED with variable intensity control and field diaphragm in the lamp. |
|
Power supply |
120V, 50/60 Hz AC adapter. |
|
Accessories included |
Power cord.
Dust cover. Operation manual. Immersion oil. |
|
Accessories not included |
Phase contrast kit. |
