Z4 Zoom System
The Z4 Zoom Stereo-microscope on Dual-LED pole stand is a laboratory-grade microscope designed for medical, veterinary, and industrial professionals. The zoom optics magnify from 7x to 45x with the included 10x eyepieces, producing amazing 3-D depth of focus and clarity for critical applications such as embryo transfer, dissection, dental lab QC, industrial inspection, and electronics rework.
Optional eyepieces and lenses provide magnification options from 3.5x to 135x.The Z4 Zoom is the perfect choice for demanding professionals performing critical inspections.
| Head | Inclined 45°, rotates 360° 10x / 20 high point eyepieces with rubber eye guards Interpupillary distance 50mm-75mm Trinocular head available |
| Objectives | 0.7x to 4.5x hard-coated zoom objectives Standard magnification range is 7x to 45x Maximum Magnification 180x with optional lenses |
| Focus | Large dual focusing knobs with metal rack & pinion Metal pinion gear zoom mechanism Dual position focus rack Maximum height 7.75” from stage to scope |
| Ilumination | Dual illuminators with variable intensity Transmitted and Incident cool, day light LED |
| Stage | Frosted stage plate Specimen clips |
| Power | 110-220V AC, 50-60Hz |
| Options | Pneumatic Arm, Boom Stand 5x, 15x, 20x Eyepieces 0.5x, 2x supplemental lens |
| Weights and dims | Height: 13” (330mm) Length: 10.5” (267mm) Width: 8” (203mm) Weight: 7.75lbs (3.5kg) |
| Z4 Zoom Video System | Includes: Z4 Trinocular Head Articulating Boom Stand with Heavy Table Base 0.5x Reducing Lens Biovid HD Camera Segmented Variable Led Ring Light – 60 Bulbs 19” HD Television Monitor Z4S-THSU-BMAT |
| Z4 Zoom on Articulating Arm with C-Clamp Base | Includes: Choice of Z4 Binocular or Trinocular Head 0.5x Reducing Lens Articulating Boom Stand with C-Clamp Base Z4M-TZM7-BMAC: Trinocular head Z4M-BZM7-BMAC: Binocular head (pictured) |

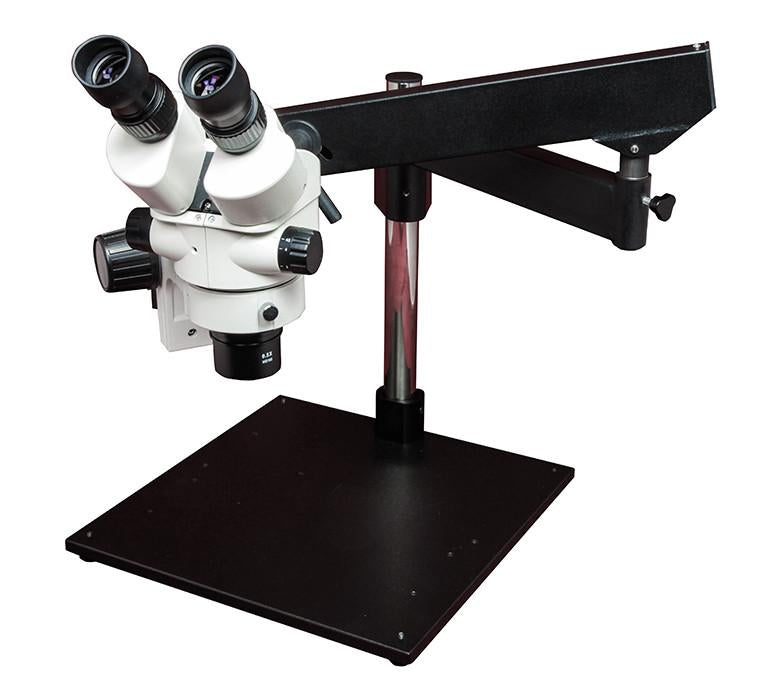

| Z4 Zoom on Articulating Arm with Heavy Table Base | Includes: Choice of Z4 Binocular or Trinocular Head 0.5x Reducing Lens Articulating Boom Stand with Heavy Base Z4M-TZM7-BMAT: Trinocular head Z4M-BZM7-BMAT: Binocular head (pictured) |

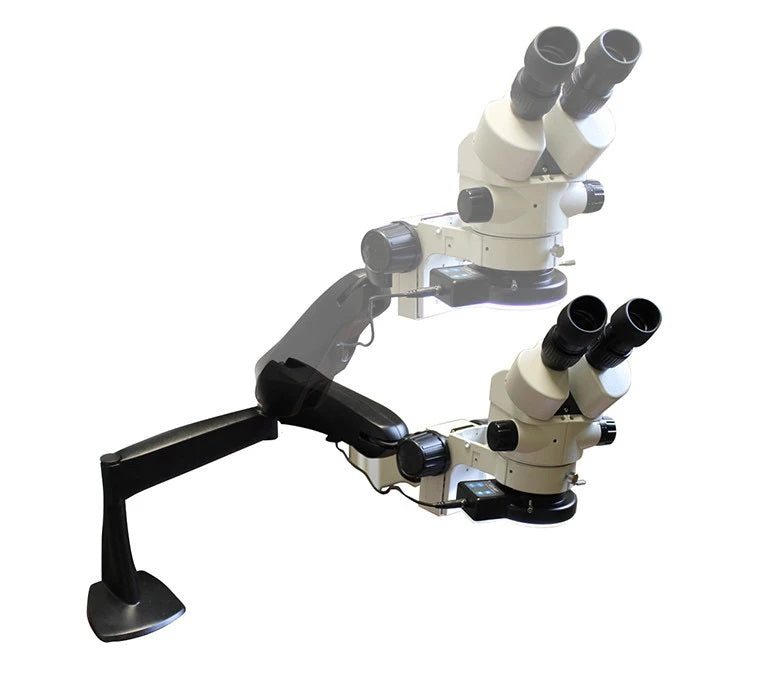

| Z4 Zoom on Pneumatic Flex Arm | Includes: Choice of Z4 Binocular or Trinocular Head 0.5x Reducing Lens Pneumatic Flex Arm Z4M-TZM7-PA77: Trinocular head Z4M-BZM7-PA77: Binocular head (pictured) |
| Title |
Z4 Zoom Binoc 7x-45x on Dual-LED light stand, Z4 Zoom Binoc 3.5x-45x with 0.5x lens on PneuFLEX-Arm (no light), Z4 Zoom Trinoc 7x-45x on Dual-LED light stand, Z4 Zoom Trinoc 3.5x-45x with 0.5x lens on PneuFLEX-Arm (no light) |
|---|
